Chalet-A-Frame LTW
Small Travel Trailer

LTW A-frame camper is a smallest one from Chalet Inc. series of A-frame travel trailers; lightweight, collapsible with hard-walls, it offers economy and a reasonable comfort  for 2 persons...

      Chalet Inc. (Albany, Oregon) is one of American RV manufacturers known for its series of A-frame travel trailers.

      In recent years, these hard-wall folding campers gained considerable popularity thanks to their undeniable advantages.

They are lightweight (so can be towed by almost any family car and fuel efficient), folding (so easy to tow on the road, maneuver on the campground and store in the garage), weather “resistant” and easy to set-up.

The latter characteristics make the clear difference compared to tent pop-up campers.

They can be fully set-up and fold-down in about 30 seconds (just by touching the button!). And hard-side walls provide full protection against any weather elements (no headache typical for tent-campers that have to dry before folding, no risk of mold due to humidity etc…

The main disadvantage of A-frame travel trailers compared to tent-ones is the sleeping capacity. Typically they are designed for 2 –to- 4 persons while tent pop-up campers can easily provide sleeping space for 6 (if not more).

Chalet LTW travel trailer (here with an optional Front Roto-Molded Cargo Box).

Courtesy of AllRVNeeds.com

     The series of Chalet’s A-frame travel trailers includes: LTW (smallest one presented in details below), Classic: models Alpine (L=15’6”, sleeps 4) and Arrowhead (L=15’6”, sleeps 3), and XL (length 18’7”): models XL-920 (sleeps 4) XL-1930 (sleeps 3) and XL-1935 (sleeps 2 in queen-size bed).

     LTW travel trailers shares common characteristics of Chalet Inc. A-frame trailers.  It is the lightest one and with its 1300 lbs dry weight it can be towed by most vehicles. Rot and corrosion resistant construction (vacuum-bonded floor with insulated laminate, powder-coated steel frame, aluminum, composite materials etc…) guarantee durability of the trailer and trouble-free operation.

Smoked-tinted panoramic windows offer privacy but at the same time they allow to “feel the touch” of the surrounding nature.

The dinette convertible to bed (76” x 52”) offers sleeping space for two. Despite the small size, the trailer includes decent kitchen with 2-burner cooktop, sink, refrigerator and countertop with storage below. Standard features include also the furnace allowing for extended use of the trailer outside of the summer season.

     Pre-wired system for solar power and an optional Trailboss Off-Road package offers the possibility to explore areas “outside of civilization (especially welcomed by enthusiasts of wilderness).

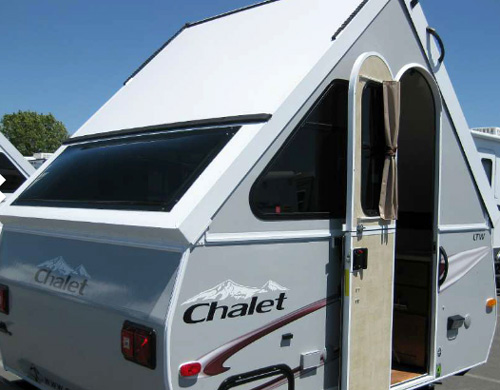

Another view of the LTW travel trailer

LTW Specifications

Overall Length

Interior space

Travel height

Exterior Open height

Interior headroom (peak)

Exterior width

High sidewalls

Dry weight

GWVR

Cargo capacity

Fresh water tank

Sleeps

12’9”

76” x 105.5”

65”

112”

94”

81.75”

38”

1,300 lbs

2,000 lbs

700 lbs

15 gals

2

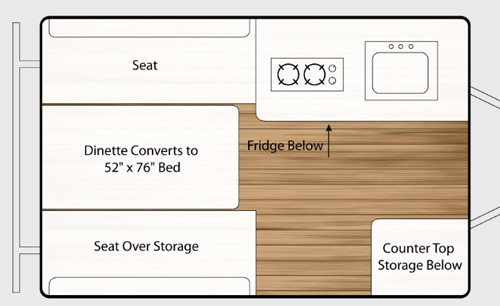

LTW A-Frame camper: floor-plan

Construction:

  • Composite Vacuum-bonded structure
  • High-gloss Filon Exterior
  • Aluminum Roof structure
  • Insulated composite floor
  • Powder-coated chassis
  • Leaf-spring suspension

Interior features

  • 2-burner cooktop w/cover
  • Single bowl, stainless-steel sink
  • Folding swivel faucet
  • 3 cubic foot 3-way refrigerator
  • Indoor/Outdoor table w/folding legs
  • Fantastic fan roof vent
  • Fresh Water tank w/12V pump
  • 16,000 BTU furnace
  • Dual 20 gallons LPG tanks
  • AM/FM, CD/DVD/Stereo  w/ Bluetooth and Speakers

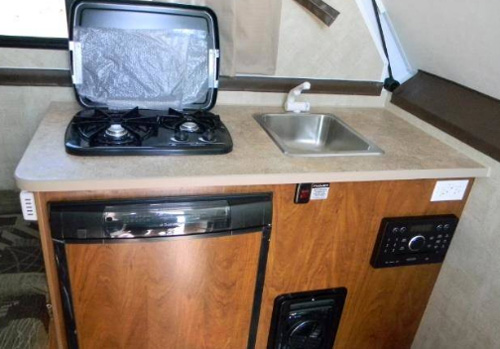

LTW Travel Trailer - Kitchen

Courtesy of AllRVNeeds.com

Exterior features:

  • Tinted windows
  • 62” x 21” front and rear skylights
  • Spare tire
  • Stabilizer jacks
  • Front rock guard
  • Electric brakes

Power

  • 55 A converter/Battery charger
  • Int/Ext GFI outlets
  • LED lights
  • Pre-wired for A/C

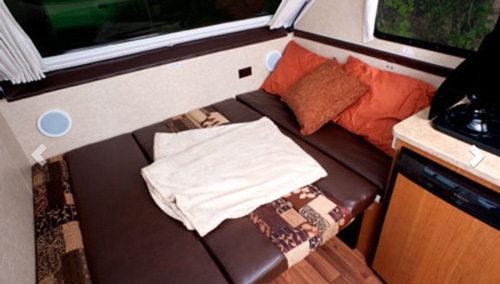

LTW: Dinette converted into sleeping place

Options:

  • 80W portable Solar Panel
  • 6 gals water heater w/ext. shower
  • 8,000 BTU A/C
  • Trailboss Off-Road package
