Extreme Tears XTR classic and off-road travel trailers are offered in 4 series: Limited (entry level), Weekender (best value), Overland (top seller) and Extreme (fully loaded models)….

We are continuing the presentation of Extreme Tears XTR Travel trailers from the --> PREVIOUS page, where you will find descriptions, design strong and weak points as well as several pictures.

One thing we forgot to mention previously - all XTR campers come in black color as standard exterior finish. However customers can select their favorable color from the “basket” of almost 50 available (although such “luxury” may come at an extra cost).

Extreme Tears travel trailer

Specifications (Overland model 5 x 10)


Overall length

Body length

Exterior width (1)

Interior width

Exterior height

Interior headroom

Ground clearance

Dry weight (2)

Tongue weight (2)

GVWR (3)

Sleeps

Cooler space storage

Galley counter height

Open Galley hatch height

Mattress size

15’

10’

84”

58.5”

67”

44”

17”

1,300 lbs

110 lbs

3,500 lbs

2

34” x 22”

42”

74”

58” x 78”


1. Large difference between exterior and cabin widths is determined by fenders.

2. With standard features

3. Axle rating

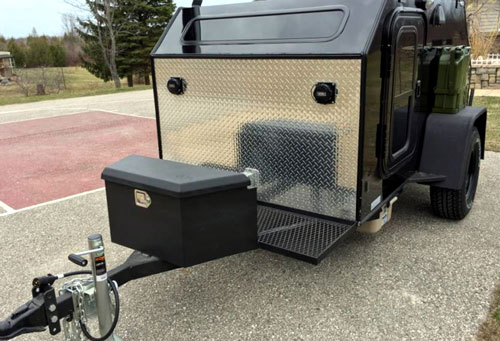

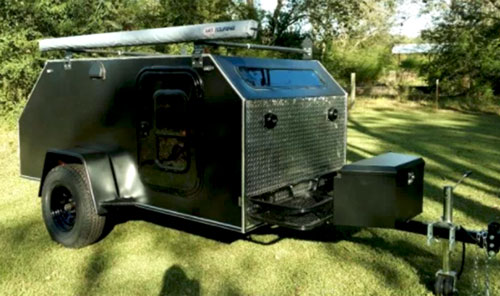

XTR Travel Trailer: Front is fully protected by the rock-guard (aluminum Diamond plate). Note the large rack and storage box on the A-Frame. The box is designed to house two 12V batteries

Construction

  • Frame: 3x2 & 2x2 fully-primed 11-gauge steel tube w/black-raptor bedliner coating
  • Body: 7-ply ¾’ Birch (side walls and floor) covered by 40 mils aluminum sheets (side walls and top)
  • Insulation: 1.5” (roof, front and sides)
  • Interior finish: Polyurethane
  • Protection: Aluminum Diamond-plate stone guard
  • Suspension: Independent Torflex w/EZ-Lube hubs
  • Wheels: 15” Black Mode rims with 30x9.5x15 Firestone Destination AT tires
  • Coupler: 2”
  • Exterior finish: Standard Black (optionally about 50 colors are available)

Standard Features (Series Overland)

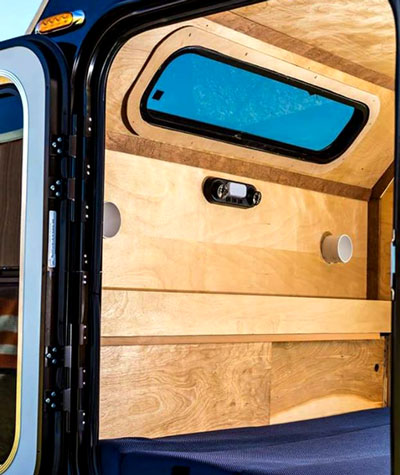

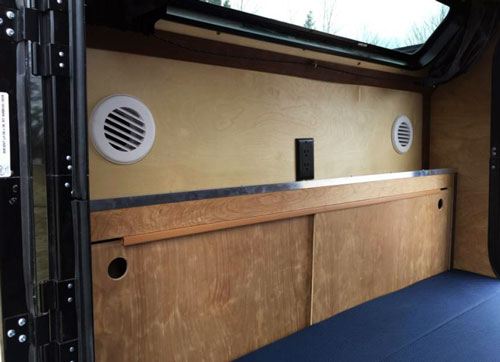

Star Gazer window comes as standard, however the headboard with very useful shelf all across the width of the camper and storage compartment behind the sliding doors is optional for Overland models.

Interior features

  • Tri-fold queen-size Millard mattress (fold into couch)
  • Star-gazer window
  • Window blinds
  • 2 Vents (side walls)

Galley

  • Rear galley w/hatch lift assisted by gas struts
  • Stainless-steel countertop
  • Cabinets (one with pass-through access)

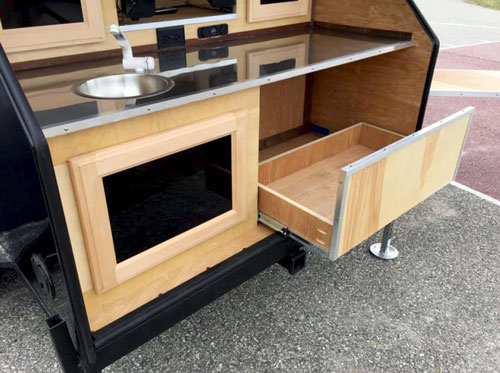

Deluxe galley seems to be a "not-to-miss" options

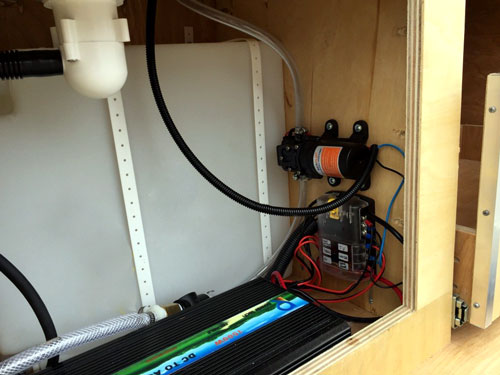

Under the counter-top you will find water tank, water pump and 1500W Inverter (black module with a blue sticker on it)

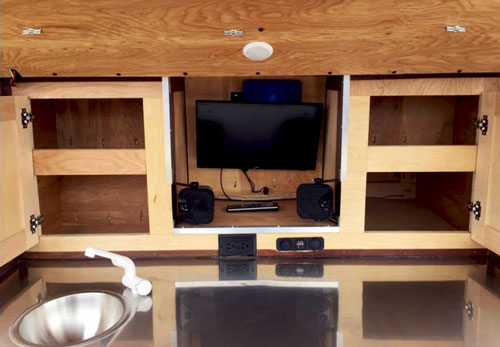

Deluxe Galley: TV can be rotated 360 degrees so it can be watched from the outside and inside. The compartment on the right has pass-through access.

Exterior features

  • Entrance doors (street & curb side w/lock, sliding windows and screens
  • 1,500 lbs flush-mounted side wind jack w/wheel
  • Two 1,200 lbs/each rear stabilizing jacks
  • Connector: 3-blades w/on-road charging wire
  • Rear receiver (for rack or bike rack)
  • Front storage rack
  • 120V shore power cord w/2 power strips
  • Roof Rack w/400lb load rating
  • ARB Awning (8 x 8 ft)
  • Tongue-mounted storage box
  • Slide under storage boxes
  • 5 gallons Jerry Can w/mounting bracket

Electrical

  • 12V Power Package (12V deep cycle battery, 2 LED dome lights, 3-way power outlet, 12V cigarette outlets, USB ports, battery monitor))
  • 1500W Power Inverter
  • 50W solar power w/battery tender
  • 12V 3-speeds Fantastic Fan
  • Climate Control Installation Kit (prep for CR500ACH AC unit/Heat/Dehumidifier includes in/out vents and electrical installation). Note (The kit does not include the unit itself)

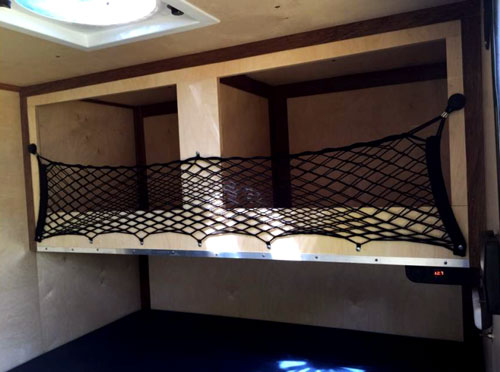

Standard interior cabinets

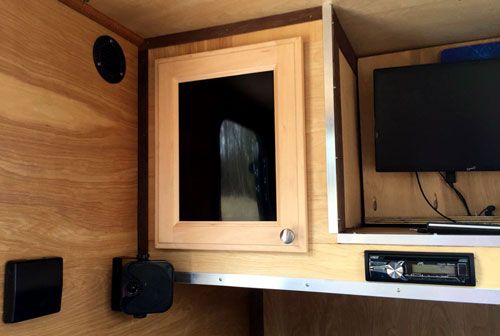

 .... and their Deluxe replacement (here on the left you see speaker and in the center components of the Entertainment Package (TV and AM/FM stereo)

Optional headboard

Options

  • Deluxe Headboard (custom cabinets w/storage shelf, dual slide doors, dome light, reading lights, front wall power outlet)
  • Spare wheel w/mount
  • Grill w/2 removable side tables
  • 5k BTU AC/Heat unit (tongue-mounted - Note that it can run only on shore power)
  • Additional 50W Solar Panel
  • Additional 12V battery
  • Deluxe Cabinets (Interior cabinets)
  • Deluxe Galley (deluxe galley cabinets, slide-out for cooler/fridge, stainless-steel sink, water pump, 10 gallons water tank)
  • Deluxe Entertainment Package (15” TV on 360 degrees rotating mount, AM/FM/DVD/CD/MP3 Stereo with int/ext speakers (requires deluxe cabinets)

Solar Panel feeds the battery "hidden" in the tongue-mounted box.

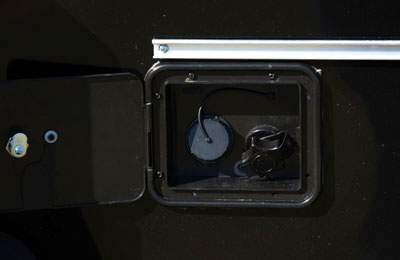

Water hook-ups
