Reflection 27RL
2017 Top Fifth Wheels

Reflection 27RL fifth wheel is a mid-range camper towable by popular full-size pickup trucks, but despite its small size it offers comfort and all residential qualities expected from Grand Design RVs....

      Grand Design RVs (travel trailers and fifth-wheels) are recognized for Residential Luxury and Value (read it “Proven Quality”). Why the latter is the result of GDRV’s policy of rigorous control and extra 100% Pre-Delivery Inspection, the residential-like luxury usually is coming with size and correspondingly weight.

GD’s Reflection 27RL 5th wheel trailer proves that thanks to good engineering effort it is possible to “pack” these attributes into smaller and reduced-weight camper that can match the towing capabilities of popular trucks.

And this opens the whole new word for the camper, as suddenly it becomes an attractive choice for the large group of potential customers already owning full-size pickup trucks….

Indeed, the Reflection 27RL with its length of slightly less than 32 feet and dry weight of about 8k pounds (modest as for the class of luxurious RVs) falls into the category of mid-size campers. That is why the 27RL found its well-deserved place on our list of top fifth wheels for 2017.

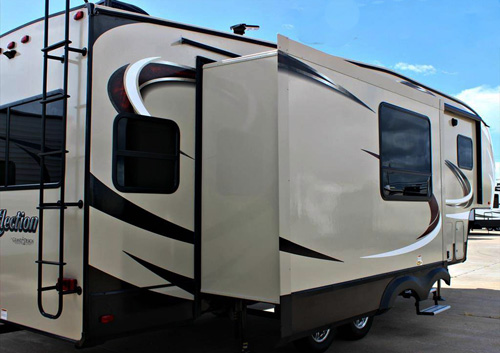

Reflection 27RL Fifth Wheel camper

Above: street-side

Below: Curbside

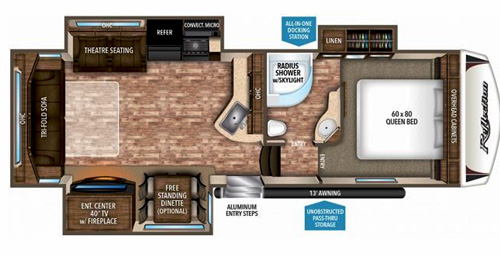

Reflection 27RL floor-plan

    The Reflection 27RL maybe more than other GDRV’s campers justifies the name “super-light”.  The structure (mostly aluminum body frame and laminated aluminum walls) is not only lite, but also elegant and stylish as expected for modern high-end campers.

Two large slide-outs in the Living / Kitchen / Dining area and the smaller-one (wardrobe) in the master bedroom make the whole camper roomy and functional.  But what really brings (and keeps) its “residential-like’ warmness and “feel” is the high-end “finish” (furniture, appliances, Corian-like countertops and “thousands” of small but important details that make difference).

Master Bedroom

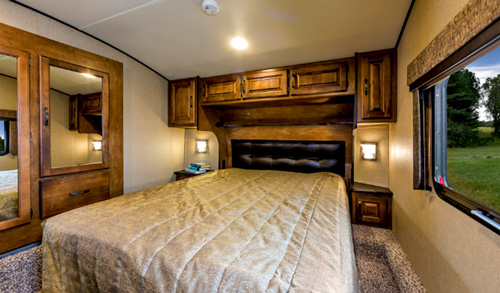

Reflection 27RL 5th wheel - Bedroom

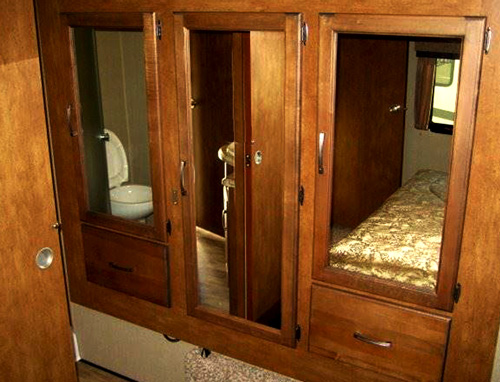

Slide-out wardrobe includes 3 sections (the right-most is part of the bathroom)

      It’s needless to repeat here how important is a good sleep. Certainly, 27RL’s bedroom with its queen-size “walk-around” bed and high quality “pillow-top” mattress promises comfort. Two bedside night-tables offer individual spaces for “before-the-sleep” book, iPad (unfortunate “partner” of our lives till late hours), but on the more positive note – also for freshly brewed cup of morning coffee.

The street-side slide-out houses large wardrobe with two sections for hanging clothes and drawer. The third section with shelves and drawer is on the bath’s side of the sliding door where its serves as the linen cabinet.  But thanks to mentioned private sliding door between the bedroom and the bath it is also very easily accessible from the bedroom. Mirror doors make the bedroom larger than it really is greatly contributing to kind of “anti-claustrophobic” feelings (if any).

Spacious overhead cabinets along the front wall and  an easily accessible under-bed box add always “much-needed” storage space. The carpeted floor nicely contributes to relaxing, warm ambiance.

Finally, let’s note that the Master Bedroom has all necessary hook-ups (power and cable) for an extra TV (just in case you cannot live without).

Bathroom

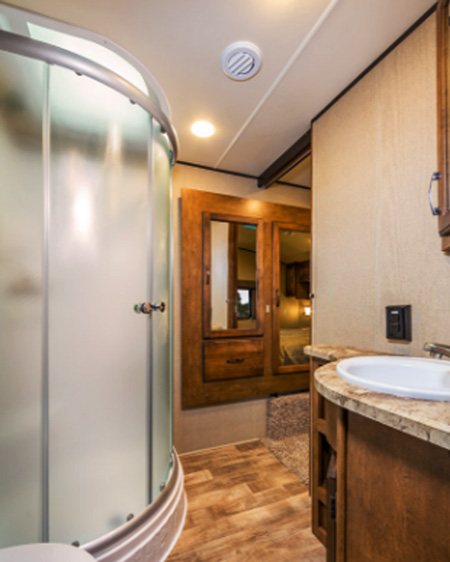

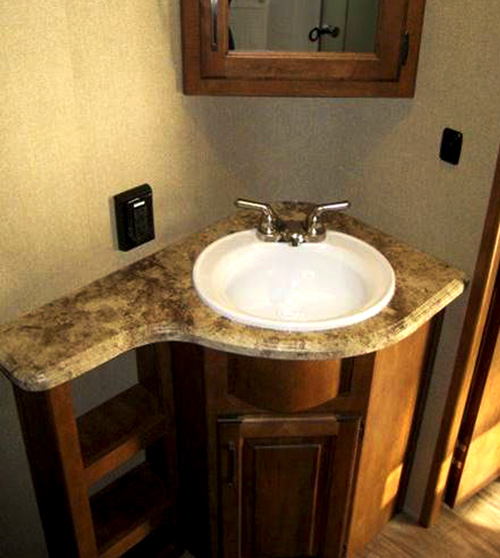

Reflection 27RL - Bathroom (shower) and Vanity (below)

      Well, in most mid-size campers a very tight area – this one seems spacious. The radius shower is clearly bath’s focal point.  The very large skylight matching the radius geometry of the sower cabin somehow enhances its elegance. But undeniably (together with mirror door of the linen cabinet) it makes the bathroom “visually” roomier and definitely lighter.

The porcelain toilet with foot-pedal-flush is already a standard even in mid-size campers. However what strikes in this bath is an oversized vanity with large countertop (always needed especially for our “better-halves”).  The vanity (and large Medicine cabinet w/mirror above) is designed to smoothly integrate with rounded wall. We also noted small but very useful details like hanger for towels, electrical outlets etc….

The second door leads to the narrow passage linking the bedroom and the living space.

Kitchen

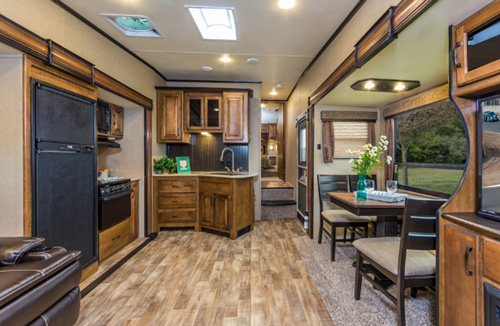

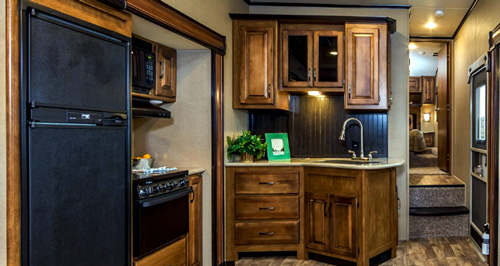

Semi-L-shaped Kitchen

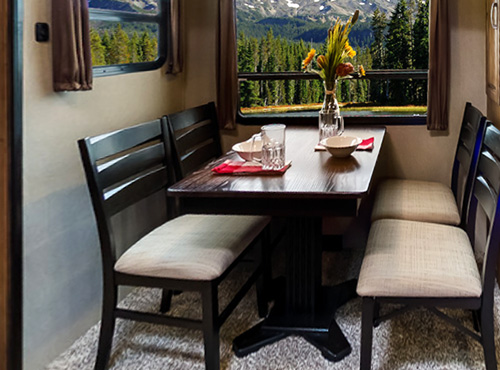

Dining Corner: Free-standing table w/chairs

      The kitchen shares one of two large slide-outs with the living area (actually both of them, because the dining table corner is located in the opposite-side slide-out). It’s an open-design so the kitchen is not “isolated” from the rest of the living space by the central island or U-shaped cabinetry. The kitchen has semi-L-shaped cabinetry facing the bathroom’s wall.  The deep, under-mounted  one bowl stainless-steel sink comes with matching countertop solid-surface cover. There is no pantry – some at first may be disappointed, but frankly, the generous space in deep kitchen cabinets should easily meet most requirements including space for a garbage bin ….

The 3-burner stove with an oven has easy to clean glass surface. The drawer’s front panel (below the oven) nicely matches remaining kitchen’s hard-wood finished cabinetry. The Corian-like solid-surface countertops offer not only generous working space but also truly residential look! All appliances (stove, microwave and 8 cu.ft fridge with freezer) have elegant black-finished faces.

The dinette with benches on both sides makes the standard dining corner. It can be replaced by an optional free-standing table with 4 chairs, and frankly although there is nothing wrong with the traditional dinette, we find that the table much better fits into the residential ambiance.

      The kitchen and the dining corner make an integral part of the living space.  It seems to be the optimal solution for mid-sized campers where the space is priceless. This is because integrating functional sections into single area brings much better effect than partitioning the limited space.

And GDRV’s designers did great job by smoothly and seamlessly integrating kitchen and dining area with living and entertainment “quarters”.

Living/Entertainment Area

View from the back of the living room

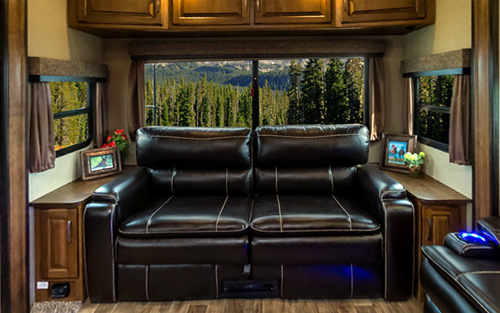

Reflection 27RL: Tri-Fold leather sofa (see the heat register at the sofa's base)

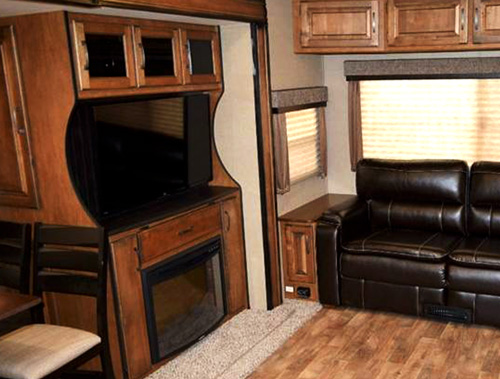

Entertainment center and firiplace

View at the living space

      The 27RL despite its small size (compared to most Grand Design fifth-wheels) stands up well to expectations. Especially in the living room it can be seen that it is just the “scaled-down” version of big luxurious campers. The standard in smaller RVs recliners here are replaced by high-end heated Hugger Theater Seats with LED-illuminated cup holders. The Tri-Fold leather sofa along the rear wall has small cabinets on both sides. They are certainly useful when you want to do some computer work ( power outlets are available), read books, newspapers or simply have your five o’clock tea and cake…

      The theater seats face the entertainment center with HD TV and combinations of CD/DVD/AM/FM/Stereo/ Bluetooth/USB (it seems there is no end) as well as the fireplace at the bottom. The TV screen and Audio/Video system is housed in the large set of cabinets offering plenty of storage space.  Add to that the overhead cabinets and you have pretty good picture of the living space.  But obviously in so tight space you may have to come to some compromises – one of them is the side access to the cabinet behind the TV. Most likely you have to move both chairs to have an unobstructed access to this storage space.

The Bauxfloor wood imitating linoleum fits into the ambiance (floor in curbside slide-out is carpeted).

     But there is one technical detail that really puts Reflection 27RL fifth wheel ahead of competition. Heat registers are typically placed somewhere on the floor and by nature of physics (and gravitation) they are prone to “collect” dirt and debris (actually some of them may be “precious”).  Here the manufacturer put all the effort to place them at the bases of cabinets and even sofa did not “escape” this destiny – the heat register is also at its base.

Finally let’s mention large tinted panoramic windows opening the camper into the outside world (hopefully the unspoiled nature), but at the same time protecting interior’s privacy.

Heat registers are integrated into cabinets bases

Exterior Storage

      The Pass-Through storage at the front of the camper is designed to store bulky stuff (camping chairs, table, BBQ, exterior screen room etc… ) and whatever you may need especially for outdoor activities. It is well engineered, so all pipes and cables usually seen in other 5th wheel pass-through storages here are hidden behind the walls. Bottom line – you have an unobstructed heated storage space with light. You will also find here the extra 120V AC outlet and Battery Disconnect Switch as well as the control panel of the Automatic Leveling System.

The Pass-Through storage has metal slam-latched doors that can be handled with one hand!

There are also few designated storages - two for LPG bottles and one for the battery.

Other features:

     The Central Docking Station on the street-side centralized all hook-ups. You will find here city water hook-up,  back and grey water tank dump controls, black tank flush, exterior shower hook-up, water pump switch and more…

Coming back to the  curbside it is worth to mention nice aluminum steps (3) with an anti-slip tape and LED lighting.

The 13 feet long power awning with an LED strip extends the living area to the outdoors so in favorable weather conditions you can comfortably spend time in a direct contact with the Mother Nature (is there anything better to do when on vacations?).

The rear ladder offers an easy access to the walkable roof although there is no factory mounted rack no information about the load you could possibly carry on it (if at all).

      The GDRV’s Reflection 27RL fifth wheel comes with most features as either standard or mandatory (so from the buyer’s point of view – standard).  It’s probably company’s policy to make sure that each of their campers keeps-up with the residential-like standard expected from Grand Design RVs. As the result you really have very little choice of options.

Just to make it clear – the company still lists optional packages like the Ultimate Power Package (UPP), Peace of Mind Package (PoMP) and Arctic 4-Seasons Protection Package (A4SPP), but they are all Mandatory as they include essential features making the camper comfortable, practical and safe.

Some of few available options include:  Free-Standing Table w/chairs (replacing classic dinette), extra 13.5k BTU A/C for Master Bedroom and Dual Pane windows.

Specifications


Exterior length

Exterior width

Exterior height

Interior height


Interior width

Dry weight

GWVR

Hitch weight

Cargo capacity

Fresh water tank

Grey water tank

Black water tang

LPG

Awning

Sleeps

30’11”

8’0”

12’0”

8’5” living area

6’7” bedroom

7’8”

8.150 lbs

9,995 lbs

1,516 lbs

1,845 lbs (1)

60 gals

75 gals

43 gals

60 lbs (2 x 30)

13 ft

4

(1) Includes water tanks and LPG, so practically the available cargo capacity is lower…


Construction

  • Frame:  8” I-beam
  • Main Body:  Laminated aluminum- framed rear & side walls, aluminum-framed floor, wood-framed roof
  • Slide-outs:  Laminated aluminum-framed roof and end-walls
  • Exterior: gel-coated
  • Insulation: R-30 (main floor), R-9 (walls), R-40 (roof)
  • Front cap: Fiberglass ( w/ Max Turn Radius)
  • Windows: Tinted safety glass
  • Cabinets: Screwed, solid core stiles
  • Flooring: Beaufloor wood-like linoleum / carpet
  • Roof: walk-on / one piece TPO membrane /5” Truss Rafters (16” OC)
  • Suspension:  Leaf-spring w/ rubberized EQUA-FLEX
  • Wheels: ST225/75R15 w aluminum rims, E-rated tires w/Nitrofill
  • Electrical Connector (7-way wire) for RV brakes and tail, clearance, L/R turn signals, brake lights…)

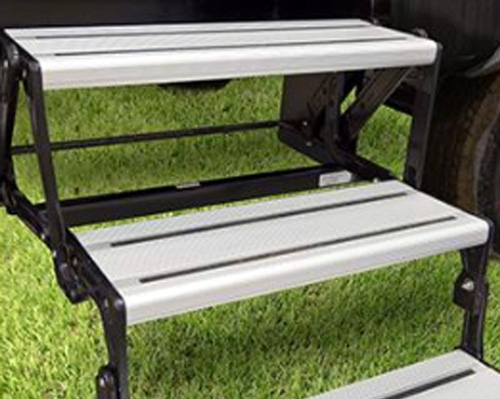

Aluminum steps

Master Bedroom

  • Queen-size bed (60” x 80”) w/ under-bed storage
  • Pillow-top mattress
  • Two nightstands
  • Large slide-out wardrobe w/mirrors (2-sections)
  • Reading lights
  • Private access to the bath (sliding door)
  • Carpet floor
  • TV and cable prep
  • 2nd A/C prep

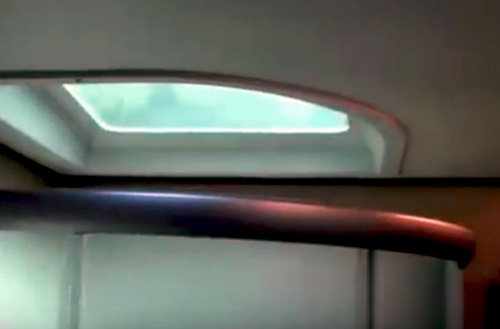

Skylight above the shower cabin in the bath

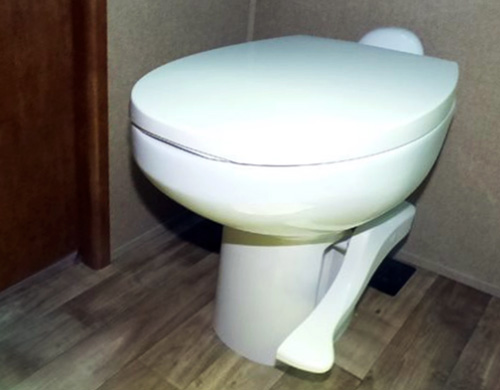

Toilet with foot-pedal flush

Bathroom

  • Radius Shower Cabin w/ large shape-matching skylight
  • Porcelain toilet w/foot-flush (Mandatory – PoMP)
  • Large Vanity w/acrylic sink
  • Large medicine cabinet w/mirror
  • Heat ducts and A/C vent
  • Power vent fan
  • Power outlet

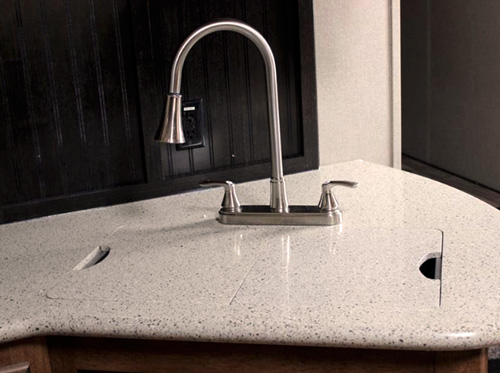

Kitchen sink

Kitchen/Dining

  • 3-burner range w/ glass surface
  • Range Hood w/light and vent
  • 30” Convention Microwave Oven (Mandatory -UPP)
  • 8 cu.ft. Fridge/Freezer  w/ Ext. Thermostat Control (Mandatory PoMP)
  • Deep, under-mount single-bowl sink w/solid cover
  • High-rise faucet w/sprayer
  • Hardwood cabinetry (w/drawers, shelves….)
  • Cabinet w/ tinted glass doors
  • Solid Surface (Corian-like) Countertops (Mandatory PoMP)
  • Dinette (Mandatory –PoMP) /Free-Standing Table w/4chairs (Optional)

Living Area

  • Tri-fold “Hide-a-bed” sofa w/ two side cabinets
  • Heated Wall Hugger Theater Seats w/ LED Lights (Mandatory – PoMP)
  • Deep overhead cabinets above the sofa
  • Large panoramic slide-out windows
  • Ductless floor (registers at the bottom of cabinets and sofa)
  • Greystone Radius Fireplace (Mandatory – PoMP)
  • Entertainment Center cabinets (w/free storage space)

Entertainment

  • HDMI/AM/FM/CD/DVD Bluetooth Stereo (Mandatory - UPP)
  • HD LED TV (Living Area) (Mandatory -UPP)
  • Interior/Exterior speakers
  • TV prep (bedroom)
  • TV Cable hook-up

Interior Features

  • Solid core cabinets w/hardwood fronts and ball-bearings full extension drawer guides
  • Residential Cabinetry (Mandatory PoMP)
  • LED lights throughout w/motion sensors

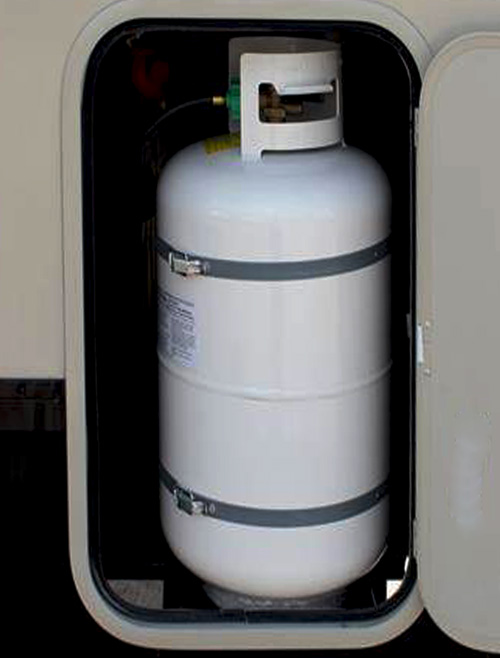

LPG tank storage

Exterior Features

  • 13 ft power awning w/LED lights (Mandatory - UPP)
  • Power Stabilizer Jacks (Mandatory - UPP)
  • 30” wide Radius entry door
  • Aluminum "Tread Lite" Entry Steps (Mandatory – PoMP)
  • Storage doors w/magnetic Slam-Latch (Mandatory – PoMP)
  • Roof ladder
  • Universal All-In-One Docking Station (Mandatory –PoMP)
  • LP Quick Connect (Mandatory – PoMP)

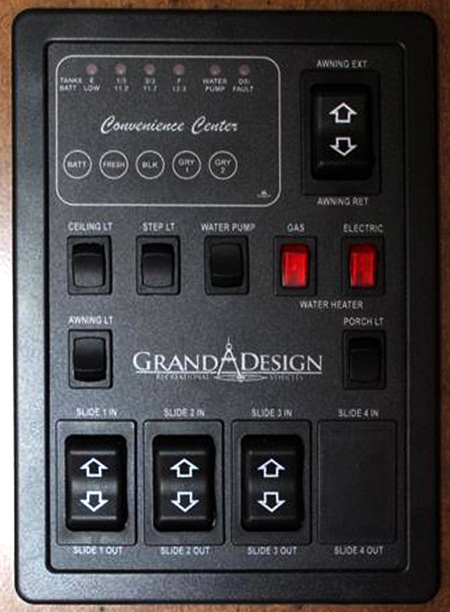

Central Control Panel

Electrical

  • Battery switch (in Pass-Thru storage)
  • LED lights throughout w/motion sensors
  • 50 A Electrical service (Mandatory - UPP)
  • 2nd A/C prep (bedroom) (Mandatory - UPP)
  • Detachable power cord w/LED light (Mandatory - UPP)
  • Central Control Panel including: Convenience Control (water pump, battery, fresh, grey and black water tanks status), Awning Switch, Water Heater  Switch (Gas/Electric), Light switches (ceiling, steps, awning, porch), Water Pump Switch, Slide-outs switches
  • Automatic Leveling Control Panel (Pass-Through storage)
  • 120V/12V electrical outlets
  • Converter (120VAC/12VDC)

Climate Control

  • Attwood 35k BTU furnace (Mandatory - A4SPP)
  • 5k BTU Electric Fireplace (Mandatory – PoMP)
  • 15k BTU roof-mounted ducted A/C  (Mandatory - UPP)
  • Closeable A/C vents
  • Max Air Fan w/rain sensor (Mandatory - UPP)

Water/Plumbing

  • High capacity water pump with Int/Ext switch
  • 17.8 gal/hr Quick Recovery Water Heater (Mandatory – PoMP)
  • City water hook-up
  • Fresh, Grey and Black water tanks
  • Fresh water drain valve (1.5”)
  • Easy access low-point drain valves
  • Black Tank Flush (Mandatory – PoMP)
  • External shower
  • Grey/Black water tanks drain hose

Safety

  • Underbelly Spare tire w/carrier
  • Self-Adjusting Brakes (Mandatory – PoMP)
  • Alarms (CO, Propane, smoke)
  • Fire Extinguisher

Mandatory Options / Packages

  • One-Touch Auto Leveling (Mandatory)
  • 2” Receiver hitch (Mandatory)
  • Ultimate Power Package (UPP)
  • Peace of Mind Package (PoMP)
  • Arctic 4-Seasons Protection Package (A4SPP) including: 35k BTU Furnace, Thermofoil Wrapped Frame and Subfloor (Beneath Main Holding Tanks), Heated and Enclosed Underbelly w/ Circulating Heat, Ducted Heat to Pass Thru Storage Area, Heated and Enclosed Dump Valves, EZ Winterization Valve in Utility Center, Insulated Slide-out Floors, Attic Vent, Double Insulated Roof and Front Cap

Individual Options

  • 2nd low-profile 13.5k BTU A/C
  • Free-Standing Table w/4 chairs (2 folding)
  • Dual-pane windows

See more fifth-wheel campers: --> 2017 Top 5th Wheels

Note:  Check with the manufacturer and/or RV Dealer for the up-to-date list of features, options as well as latest specifications. These written above may not be accurate and certainly are subject to change by the factory.  We are not responsible for any inaccuracy, the above text is provided only for the general information.
