Black Series HQ15 Specs
Off-road Travel Trailer

        Black Series Campers HQ15 off-road travel trailer: specifications, construction details and features....

         In the previous chapter we provided detailed review of the Black Series' HQ15 off-road travel trailer. If you did not read it yet, we suggest to go back to the first part of this article. In our opinion, it will be beneficial to readers to first get familiar with this unique, truly unmatched by competition RV coming from Australia.

So let's start: --> Review of HQ15 Off-Road Travel Trailer

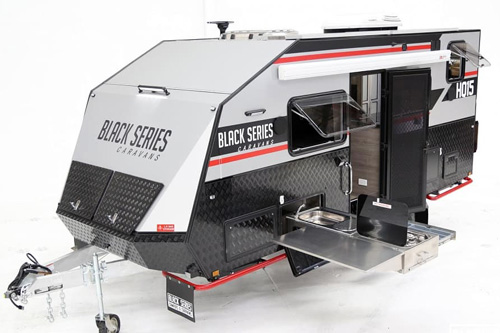

Australian (left-side driving) version of HQ15.

Please note that North-American models have "mirrored floor-plan" to accommodate requirements imposed by right-side driving

Following is the best to our knowledge presentation of specifications, features and construction details supported by numerous pictures. At the end you will also find a bonus - video tour of HQ15 by RVs of America (truly masterpiece in terms of provided information).

Specifications


Overall length (1)

Overall width

Exterior height

Interior cabin length

Interior cabin width

Ground clearance

Dry weight (2)

Cargo

GVWR

Drinking water tank

Fresh water tank

Grey water tank

Black water tank

LPG

Sleeps (3)

22’3”

87.6”

9’67”

15’6”

84.6”

?

4,722 lbs

2,278 lbs

7,000 lbs

16 gals

50 gals

26 gals

26 gals

2 x 20 lbs

2+1


1. Approximative numbers converted from decimal system

2. With standard features (empty water tanks)

3. Dinette converts into bed for child (about 4.3 ft length)

Construction:

  • Chassis: Hot-dipped galvanized steel (RHS 6” x 2” x 0.15”)
  • Shell: Welded aluminum frame, aluminum/composite sandwich roof and walls w/diamond plates
  • Insulation: Foam (R-16 equivalent roof and walls)
  • Suspension: Quad-shock, independent (dual shock absorbers and coil springs per dual arm)
  • Axle: Single
  • Wheels: 16” black-coated steel rims, each rated at 3,417 lbs (1,550 kg)
  • Tires: 265 x 75 x R16 Cooper all terrain
  • Brakes: 12” Electric with Handbrake Park Assist
  • Windows: X5 Eurovision Polycarbonate (dual-pane, tinted)
  • Entrance Door: Tri-lock security door w/separate, locked fly screen & protection grid section
  • Water tanks: Polyurethane with protecting cover (alloy or 0.12” aluminum)
  • Hitch: Articulated, off-road approved “Polyblock” w/vehicle fixture included
  • Protection: diamond plate on lower sides of the cabin, guard bars along sides
  • Floorplan: Rear bath

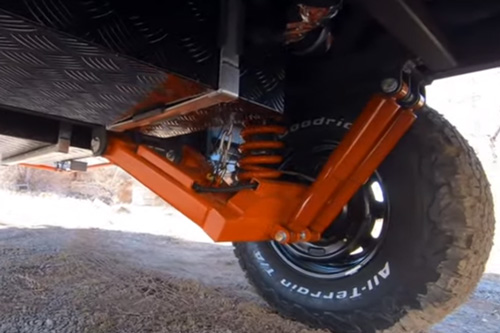

Off-road quad-shock suspension

Interior features

  • Windows with fly insect screens and privacy shades
  • Dual pane tinted Skylight w/shade and screen
  • 4 side windows
  • Vinyl flooring throughout
  • Marine-grade leather dinette seats and storage pockets
  • Cabinetry:

 - Malaysian timber (honeycomb structures) w/durable    gloss timber veneer

- Gas-strut assisted cupboards doors w/travel-safe lock

- Soft-close drawers w/travel-safe locks

  • Bath’s sliding doors

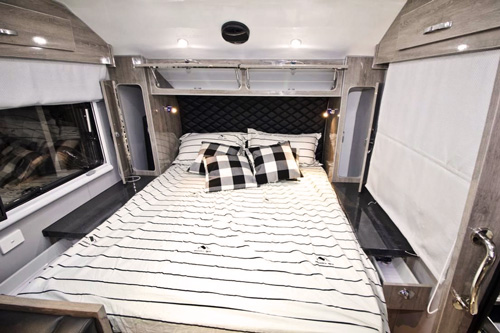

Sleeping corner: visible deep hanging cabinets, side night tables w/drawers and extra winter shades (partially deployed on the windows). The later offer better thermal barrier at low temperatures

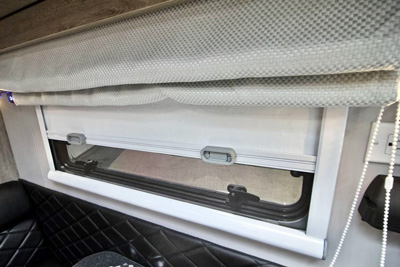

Window details: sliding-down privacy shade and partially rolled-up thermal protection

Sleeping space

  • Double-size bed w/innerspring mattress
  • 2 x hanging cabinets
  • 2 x overhead cabinets
  • 2 x drawers
  • Dimmed reading lights
  • TV Screen
  • Skylight
  • 2 x side windows

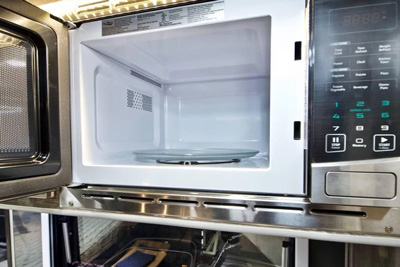

Microwave with cooking and grilling functionality

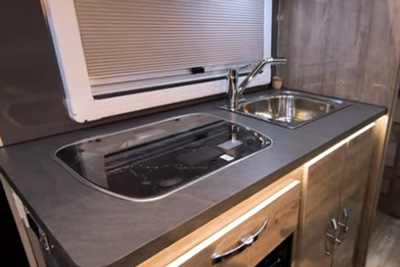

Glass lid increases the work space

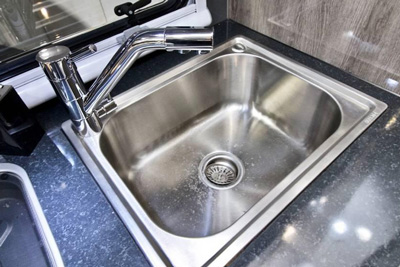

Sink with dual faucet for drinking and utility water

Indoor kitchen

  • Stainless-steel 3-burner stove w/glass lid (Dometic)
  • Stainless-steel single-bowl sink w/ integrated dual faucet (drinking and freshwater)
  • 2.6 cu. ft fridge w/freezer (Dometic)
  • Microwave (overhead-mounted)
  • Slim-Profile Hood w/twin fan and lights
  • Full height acrylic splash-back
  • Overhead cabinet
  • Cabinets w/drawer
  • Large window

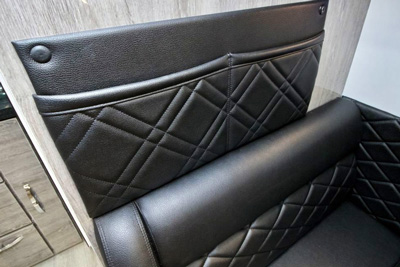

Leather pockets for magazines, newspapers, books....

Dinette

  • Genuine marine-grade leather seats w/fine diamond stitching pattern and folding leg-rest side panels
  • Robust, adjustable/removable for outdoor use table (all can be converted into sleeping space for a child)
  • Large window along
  • Genuine leather pockets

Dry Bath

  • One-piece, enclosed fiberglass shower cabin w/sliding door and ventilation skylight
  • Vanity w/porcelain sink, mirror and cabinetry
  • Porcelain toilet
  • Storage shelves
  • Stainless-steel towel racks
  • Large window

Entertainment

  • 24” TV w/DVD function
  • Clarion CD/FM/iPod/Bluetooth/USB system
  • 2 x Pioneer roof-mounted speakers
  • 2 x marine-grade exterior speakers
  • Jack Digital HDTV antenna w/built-in SureLock

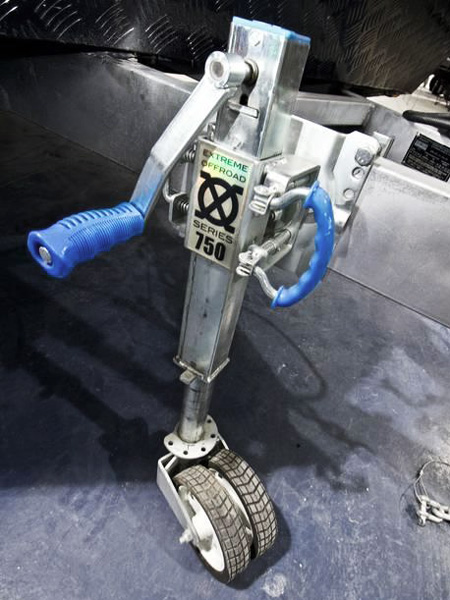

Swing-away 10” Jockey Wheel

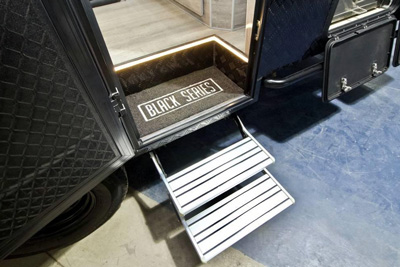

Drop-down entrance steps

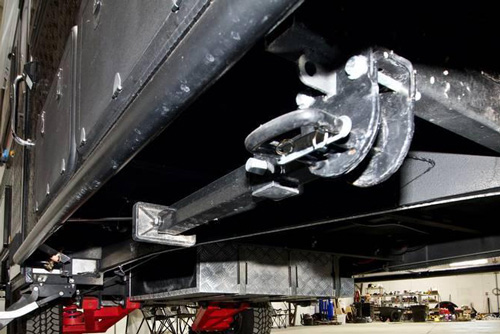

Stabilizing jack (here in travel position)

Exterior features

  • Manual awning (optional – Dometic’s electric one)
  • Swing-away 10” Jockey Wheel
  • 4 x stabilizer legs
  • Drop-down steps (optional electric version)
  • Exterior shower w/hot & cold water

Outdoor kitchenette

  • Slide-out combo stainless-steel sink and 3-burner stove unit w/extension board
  • Large work area
  • 2 Drawers (one for utensils)

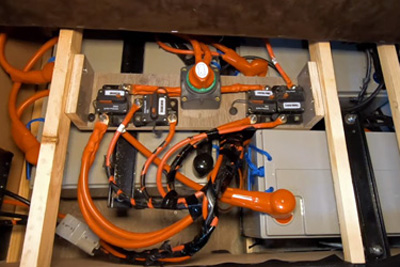

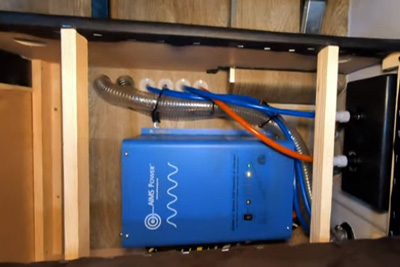

Storage under dinette's benches: above - 4 AGM batteries, below: inverter

Electrical

  • 12Vdc/110Vac electrical system
  • 4 x AGM Gel batteries (100Ah each)
  • 2 x 150W Roof-mounted solar panels w/controller
  • 2kW pure sinewave inverter (4kW peak power)
  • Custom (Black Series) control panel (battery and solar monitor, switches, resettable DC breakers w/fuses, water tanks monitors, water heater switches)
  • 30 A shore hook-up w/dedicated AC breakers
  • Battery disconnect switch
  • 12Vdc cigarette-type and USB plugs (interior and exterior)
  • 7 x 110Vac interior outlets
  • 1 x 110Vac exterior outlet w/GFCI)
  • LED light throughout:

- Interior strip mood lights)

- Individual reading lights (dinette and bedroom)

- Touch lights (kitchen, bath)

- Exterior wide-angle lights (rear and sides)

- Exterior front and rear bar-lights

- Entrance step light w/sensor

  • Anderson plug (50 Amps)

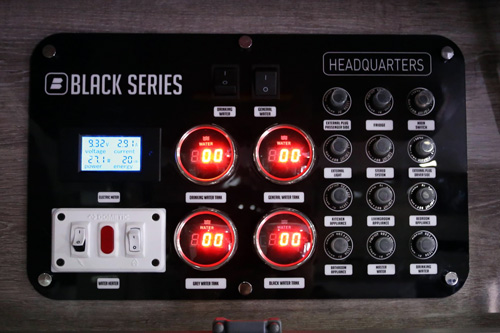

Central control panel

Climate Control

  • Slim, roof-mounted 13.5 kBTU combo A/C-Thermo-pump unit
  • LPG 16 kBTU furnace w/thermostat control

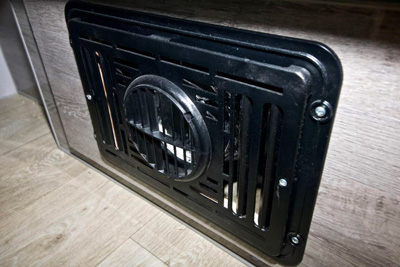

LPG Heater is located under the bed

Water/Plumbing

  • 6 gallons Atwood water heater (LPG/Electric)
  • Drinking water pump w/3-stage filter
  • Fresh water pump
  • City, Drinking & Fresh water hookups
  • Black water tank flash
  • Fresh water tap

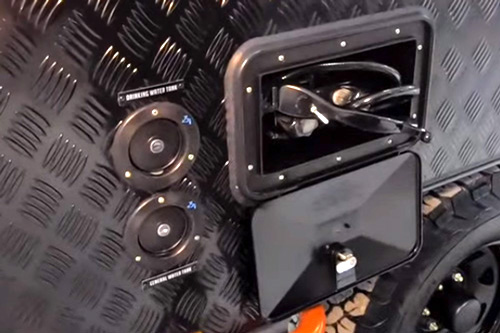

Hookups for drinking and utility water as well as exterior shower

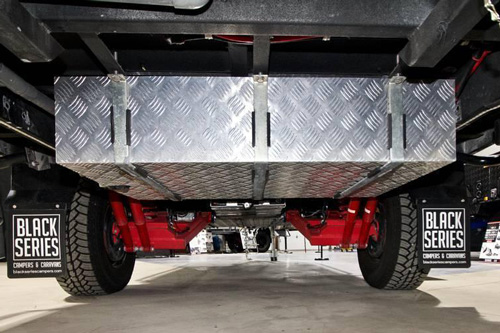

Water tank

Storage areas

  • 2 x ventilated, front compartments with locks (one used for LPG tanks)
  • Large, exterior pass-through storage (front)
  • Under Dinette seats storages (one used for batteries, 2nd one for inverter)
  • Large, rear mounted basket-type storage for wood
  • 2 x 5 gallons Jerry-can holders
  • Large leather storage pockets (dinette, bedroom and entrance areas)

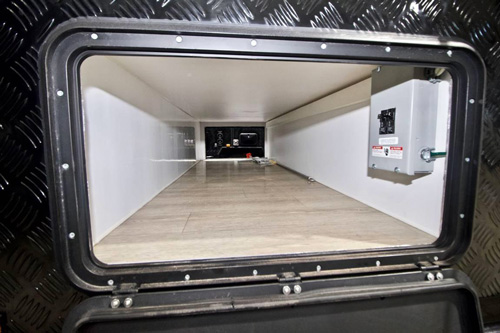

Pass-trough storage houses the AC breaker panel

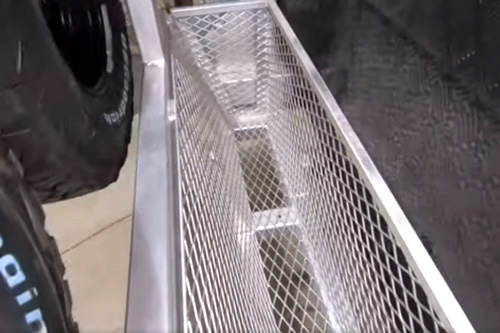

Rear-mounted cargo storage

Security

  • Alarms and monitors (smoke, LPG)
  • Fire extinguisher
  • ALKO breakaway system w/attachment to the towing vehicle
  • 2 x full-size spare wheels (rear-mounted)
  • 2 x rear recovery shackles (each rated at 4.75T)
  • Handbrake

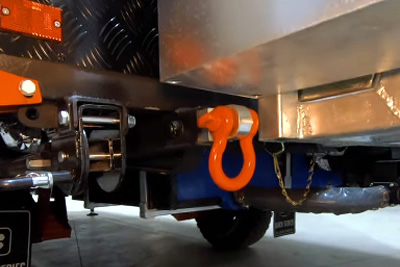

Recovery shackle

Options

  • Electric awning
  • Electric drop-down entrance steps
  • Winter package (heated blankets for tanks, insulated pipes … )
  • 1-leg dinette table (offers more room for legs, but prevents dinette’s conversion into the extra bed)

Summarizing

           Black Series HQ15 off-road travel trailer sets new standards for this segment of the RV industry. It’s an example of robustness, ingenuity, quality and elegance that will be difficult to match by the competition. Designed for families of 2+1, it is a very reasonably priced model that can be towed by larger SUVs or F150 -class of trucks. With more than 30 thousand of HQxx models already on Australian Outback trails, its well matured designs in versions modified for the North American market are now available in the US.

Note that layouts (floorplans) of American versions of Black Series’ models are mirrored Australian layouts. This is to accommodate trailers for right-side driving. Unfortunately, most pictures available online represent the original Australian left-side drawing models.

All pictures are courtesy of Black Series Camper (Australia) or RVsofAmerica (USA)

Go back to: --> Extreme Off-Road RVs

If it was not enough, I invite you for long but very technical and descriptive presentation of HQ15 by Rvs of America

Note:  Check with the manufacturer and / or authorized RV Dealer for the up-to-date list of features, options as well as latest specifications. These written above may not be accurate and certainly are subject to change by the factory. We are not responsible for any inaccuracy, the above text is provided only for the general information.
