Luna Travel Trailers Specifications and Features

inTech’s Luna teardrop travel trailers are modern, lightweight and stylish RVs that already gained recognition of some of the best RVs for 2018. See their specifications and features

Luna teardrops (including their Lite version) are the newest RVs designed and manufactured by located in Nappanee (Indiana) company inTech RV.

Continuing from the previous page:

--> Review of Luna Teardrop Trailers

        When it comes to dimensions, there is no difference between Luna and Luna Lite models. What makes Luna Lite tighter is rather selection of standard features and available options. So, for example heavier 10.5 kBTUs cool-cat combo A/C with Heat Pump available for Luna is not offered for Luna Lite. Instead the 8 kBTUs A/C is proposed. Similarly, the 40’ LCD TV is replaced by the smaller 34” one.   For the same reasons, the microwave oven was removed from standard features and stove is limited to 2 burners. Other Luna’s visible items you will not see in Luna Lite is an impressive rear bumper.

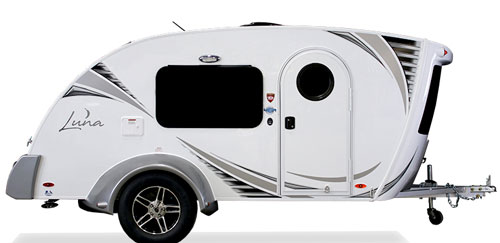

Luna Travel Trailer

Luna-Lite travel trailer

Specifications

Overall length

Box length

Interior (cabin) length (1)

Exterior width (2)

Interior width

Exterior height

Interior headroom

Hitch Height

Hitch length

Ground clearance

Dry weight (3)


Tongue weight

GVWR

Rear Receiver rating (4)

Fresh water tank

Gray water tank

Black water tank

LPG

Sleeps

15’6”

13’9”

6’11”

94”

69”

6’8”

4’6”

15 5/8”

21”

11 ½”

1,700-1,800 lbs (Luna)

1,450-1,630 lbs (Luna Lite)

180-200 lbs

2,200 lbs

200 lbs

8 gals

-

-

20 lbs

2

1. Cabin length is smaller than the full box due to the rear kitchenette

2. Includes fenders (72” box width without fenders)

3. Depending on features

4. Rear receiver is designed for bike rack (or similar), but not for towing any other trailer!

Construction:

  • Chassis: All-Aluminum (Triple Tube A-frame)
  • Box Frame:   All-tube fully-welded aluminum frame
  • Shell: Super-Gloss fiberglass (side walls and roof)
  • Fenders: Plastic, color matched for Luna /Aluminum powder-coated, black for Luna-Lite.
  • Insulation:  Sidewalls and roof
  • Windows: Front - Panoramic three-ply tempered glass windshield, Sides: Frameless 36" x 20" tinted glass opening up.
  • Entrance door: 2 on both sides w/radius design
  • Interior finish: partially carpeted
  • Floor: Vinyl
  • Axle:  Dexter torsion
  • Brakes: Optional electrical
  • Wheels: Aluminum w/ ST205/75R15 Nitro Filled Tires
  • Ball Coupler: 2”
  • Kitchen: rear hatch
  • Exterior Colors: Silver Mine, Sunburst Orange, Electric Blue, Mediterranean Blue (Luna); Asteroid Silver  or Space Blue (Luna Lite)

Standard Features

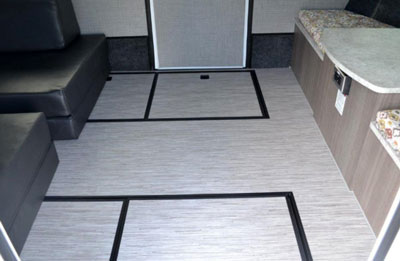

In-floor storage bins

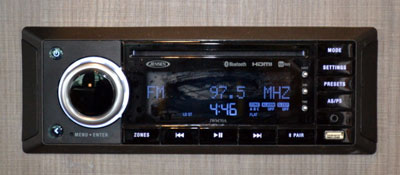

Luna's AM/FM/DVD Stereo

Interior:

  • 4 x all-aluminum In-floor storage (full capacity 7500 cubic inch)
  • 2 Front seating w/ integrated storage and small table.
  • Two 30” by 82” Futon bed-style mattresses (folding to seats w/backrests & cup holder) extending to full-length sleeping place
  • Day/night shades
  • AM/FM/CD/Bluetooth/DVD Stereo w/ (2) Interior & (2) Kitchen Speakers (Rockford Fosgate speakers in Luna)

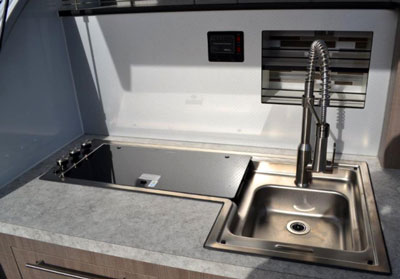

Luna's stainless-steel combo stove-sink

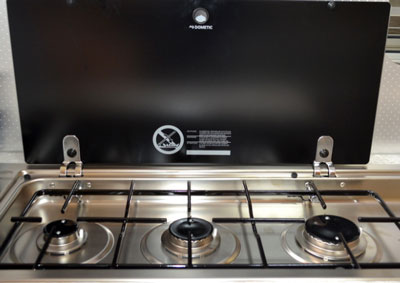

3-burner stove with opened lid

Luna: Kitchen cabinets

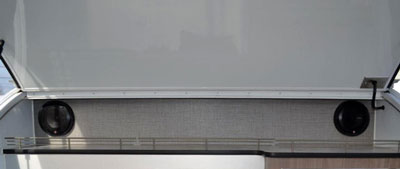

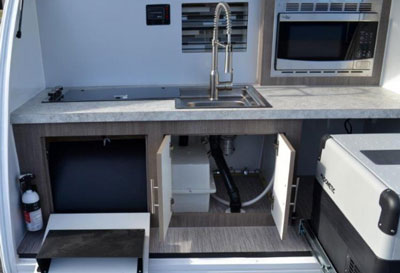

Galley: storage shelf with railing

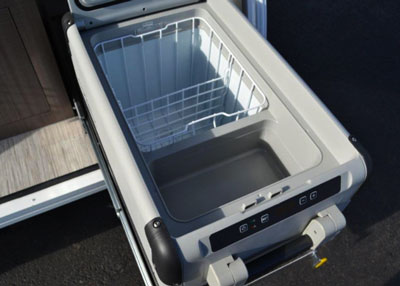

Opened refrigerator

Kitchenette

  • 3-burners stainless-steel LP gas stove (2-burners in Luna-Lite) w/glass cover
  • Stainless steel sink w/high-rise, pull-down commercial style faucet
  • 12V Refrigerator on slide-out tray (w/120V prep for optional 12v?120V fridge)
  • 1 cu. ft. Stainless-steel microwave oven (Luna only)
  • Storage cabinet
  • Pantry (not available in Luna Lite)
  • Storage shelf w/railing or net)
  • Read door w/gas struts
  • 20 lbs LPG tank (in front-access compartment)
  • White aluminum walls

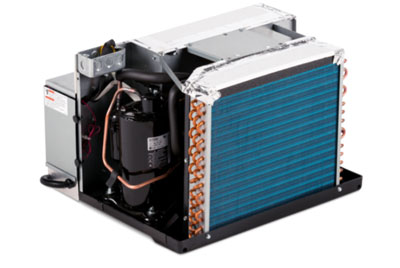

Luna: Optional Cool-Cat A/C - Heat Pump module

Climate control

  • A/C prep (AC units are optional)
  • Roof-mounted power vent (or optional MaxxAir vent w/remote)
  • Upward opening side-windows

Wall-mounted MaxxAir remote

Exterior

  • 1200 lbs Manual front Jack w/ Bogey Wheel
  • Round Fenders w/ Integrated Side Step
  • Rear stabilized jacks
  • 2 Entrance doors w/window (curbside and roadside)
  • 2” receiver (200 lbs load capacity)
  • Front LP compartment cover (Matched color for Luna)

Water/Plumbing

  • 8 Gallon Fresh Water Holding Tank
  • City Water Hookup w/ Fresh Water Fill

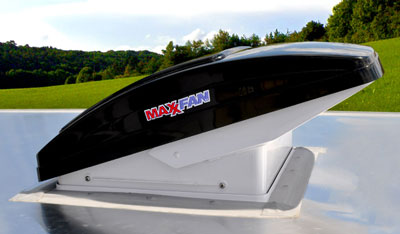

Roof-mounted optional MaxxAir Vent

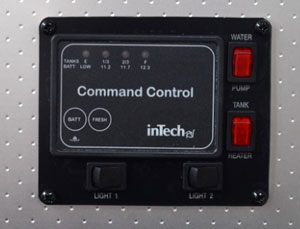

Command Panel  is located in the kitchenette

Shore Power connection

Electrical

  • 30 Amp load center w/30 Amp Shore Cord & access hatch
  • 35 Amp Converter/Charger
  • 12V fuse panel
  • Batery box w/prep
  • 12V roof went
  • 12V outlet w/ 2 USB ports (Luna) / 3 12V outlets (Luna Lite)
  • 12V water pump
  • 7-Way Trailer Plug
  • Solar Panel Charge Port Prep
  • 120V Kitchen Outlet
  • 12V LED Kitchen Lights
  • Exterior TV Cable Inlet w/ Interior Outlet & 12V Power
  • 2 Exterior 12V LED Scare/Porch Lights
  • 4 Interior 12V LED Dome Lights w/ 3-Way Switch
  • LED Bullet Clearance Lights w/ Reflectors
  • LED BeeHive Front & Rear Marker Lights
  • 4 GloLight LED Tail/Brake Lights (2 in Luna-Lite)
  • Front 12V LED Accent/Hitching Light
  • Command Control Panel

Only in Luna:

  • Roof Mounted HD TV Antenna
  • 2 x 120V Interior Outlet
  • 2 Interior 12V LED Directional Reading Lights
  • Color Matched Rear Roof Clearance Light Bar
  • Color Matched Rear Bumper w/ Corner Accents

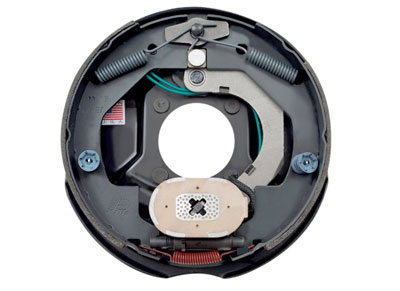

Optional electric brakes

Safety

  • Safety chain
  • Under Frame Mounted Spare Tire (only Luna)
  • Fire extinguisher (located in the kitchenette)
  • Alarms/Detectors (CO, Propane,
  • Electric brakes (optional)

Optional Features

  • MaxxAir ceiling fan w/remote control
  • 10.5 kBTU Dometic Cool Cat A/C w/Heat Pump w/wall-mounted thermostat (Luna) / 8k BTU Pummel Drive wall-mounted AC (Luna Lite)
  • 12Vdc/120Vac upgraded refrigerator
  • 40” LCD TV (32” for Luna-Lite)
  • Electric brakes

Summarizing: Luna teardrop-style travel trailers are modern all-aluminum/fiberglass RVs. Lite enough to be towed by most small SUVs or even family cars, very stylish representing the newest industry trends, they are ideal for quick getaways for 2. Spacious, with well-equipped rear kitchenette it offers more than traditional similar size teardrop trailers. Models of Luna are offered at very affordable price (depending on versions and options between 16k$ to just below 20k$) with transferable warranty (in fact, the first such case in RV world).

Go back to the previous page: --> Review of Luna Teardrop Trailers

or go to: --> Best Small Travel Trailers

Pictures are courtesy of inTech RV as well as SunnyIslandRV.com and HolidayOnWheelssc.com

Note:  Check with the manufacturer and/or authorized RV Dealer for the up-to-date list of features, options as well as latest specifications. These written above may not be accurate and certainly are subject to change by the factory.  We are not responsible for any inaccuracy, the above text is provided only for the general information.
