InTech Sol Specifications
Ultra-Lite Travel Trailers

The “beauty” of Sol’s design is that almost all generous set of features come standard, the only options are awning and external slide-out kitchen w/grill and fridge.

     On the previous page we made the presentation of the newest model of InTech’s ultra-lite travel trailers: Sol. Freshly released from the factory’s design group it made kits debut in late 2018, and thanks to stylishness, interior space and generous set of standard features it almost instantly brought attention of the community of RV-ers. If you want to read description, see pictures, please go to the page:

--> InTech Sol Ultra-Lite Travel Trailer: Part-1

InTech RV: the newest ultra-lite model - Sol

  ... and its floor-plan

Below we continue the presentation of the Sol, this time focusing on technical specifications and features.

Specifications


Parameters

Exterior length

Interior length

Exterior width

Interior width

Exterior height

Interior height

GVWR

Dry weight (UVW)

Tongue weight

Cargo

Fresh water tank

Black water tank

LPG

Awning

Sleeps

19’

15’9”

8’6”

6’10”

9’6”

6’6”

3,900 lbs

3,050-3,200 lbs

400 lbs

700 – 850 lbs

28 gals

30 gals

2 x 20 lbs

10 ft

3 or 2+2kids

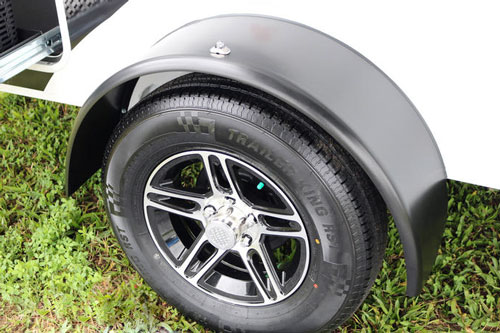

Aluminum rim and black fender

Source: www.mountcomfortrv.com

Construction

  • Frame: All aluminum
  • Chassis: Aluminum tubes structure w/fiberglass walls and roof
  • Floor: composite (wood-free)
  • Insulation: Walls and roof
  • Axle: Dexter torsion
  • Wheels: Aluminum rims with ST205/75R15 nitro-filled tires
  • Brakes: Electric
  • Coupler: 2” ball
  • Windows: Tinted glass (5) side windows, tempered glass windshield
  • Electric Plug: 7-way
  • Fenders: black powder-coated
  • Color: white w/selection of graphics in silver, blue or gold

Standard Features

Interior Features

  • Stainless-steel appliances
  • Vinyl walls
  • Woven Vinyl floor (marine-grade)
  • Day/night shades for 6 windows, roll-down shade for front panoramic windshield
  • Creamy-tan and white colors

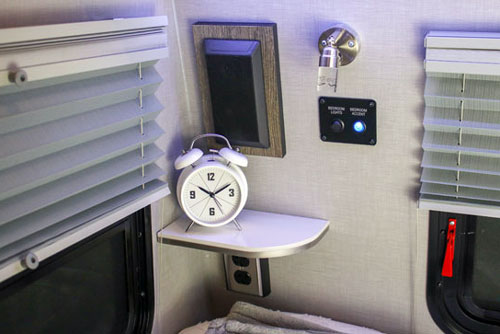

Fragment of the "bedroom" (or rather sleeping area)

Bedroom

  • Queen-size bed w/mattress (real location)
  • Underbed drawer
  • 2 reading lights
  • Two small shelves
  • Speakers
  • Wardrobe w/hanging bar
  • Reading lights (white/blue)
  • 3 windows (2 can be open)
  • Overhead cabinets and cubby storage

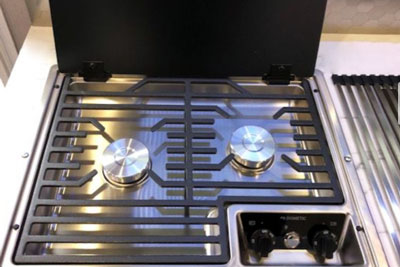

2-burner Cook-top with iron grid

Kitchen/Living

  • 2-burner stainless-steel cooktop w/flush-mounted lid
  • 3.7 cubic ft 3-way fridge w/freezer
  • Large, stainless-steel sink w/flush-mounted draining lid
  • High-rise, brushed nickel faucet w/sprayer
  • Stainless-steel microwave
  • Under-fridge drawer
  • Kitchen countertop extension
  • U-shaped front dinette w/rotating table and storage
  • 2 reading lights (dinette)
  • standing and overhead cabinets

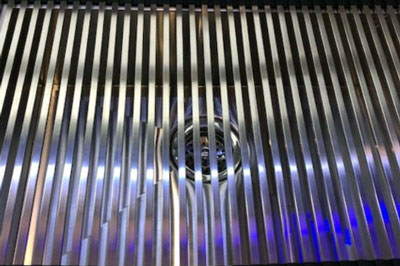

Sink's lid can also serve as a drainer

Bath

  • Cabin w/door
  • Porcelain toilet w/foot-flush
  • Brushed-nickel shower
  • Mirror (door-mounted)
  • Skylight w/vent
  • Accessory Storage Net

Skylight with power vent in bath

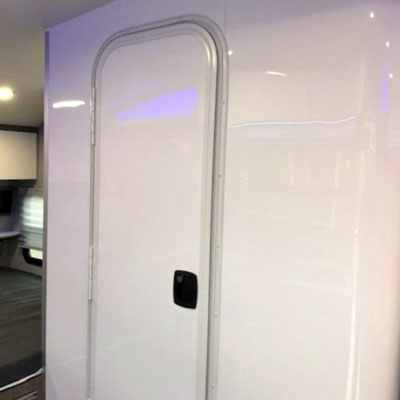

Bathroom cabin offers full privacy

Entertainment

  • 32” LED TV w/Locking Swivel Mount
  • AM/FM/CD/Bluetooth/DVD Stereo w/ Speakers
  • Roof Mounted HD TV Antenna
  • Exterior TV cable hook-up

Jensen's Stereo and Water/Battery Control & Monitoring system

Exterior features

  • Manual tongue jack w/Bogey
  • Pullout step w/LED light
  • Two 20lbs LPG tanks in front compartment w/cover
  • 4 manual stabilizing razor-jacks
  • 2" Rear Receiver
  • Entrance door w/window

Climate Control

  • 16k BTU furnace
  • 13,5k BTU low-profile, roof-mounted A/C
  • Fantastic fun w/rain sensor
  • Wall-mounted thermostat & control

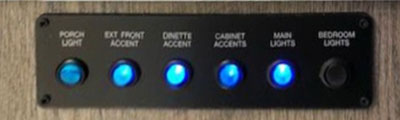

Light control panel is located next to the entrance door

110Vac outlet, 12Vdc, USB ports, battery disconnect switch and Converter/Fuse panel

Electrical

  • 30 Amp Shore Hook-up w/Cord
  • 35 Amp Converter/Charger
  • 12V Fuse Panel
  • Battery Box & Battery Prep w/ Disconnect Switch
  • 12V LED lights (8 LED Dome Lights, 4 directional reading lights)
  • 120V Interior Outlets
  • USB Ports
  • Solar Panel hook-up
  • Monitor Panel w/ Water Tank Heater
  • LED lights (rear clearance, tail/brake, front markers, hitch)

Water

  • Water hook-ups (fresh, city)
  • Black/Grey combo tank (30 gallons)
  • Fresh water tank (28 gallons)
  • Water Pump (3 gpm) w/ Switch
  • 6 Gallon Gas/Electric Water Heater
  • Exterior Shower Hookup

Exterior storage

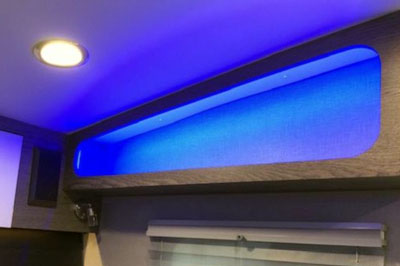

Cubby storage with beautiful blue accent light

Storage

  • Under dinette's bench (1)
  • Upper cubby storage (dinette)
  • Overhead cabinets (front-dinette, kitchen, rear bedroom)
  • Kitchen standing cabinets
  • Bedroom wardrobe
  • Bedroom under-bed drawer
  • Under-fridge drawer
  • Rear Exterior Storage Compartments (one may be used for optional slide-out kitchen)
  • LPG tanks and Battery compartments

Safety

  • Safety chains
  • Fire Extinguisher
  • Detectors and alarms (CO, LP,
  • Spare wheel (under-frame mounted)

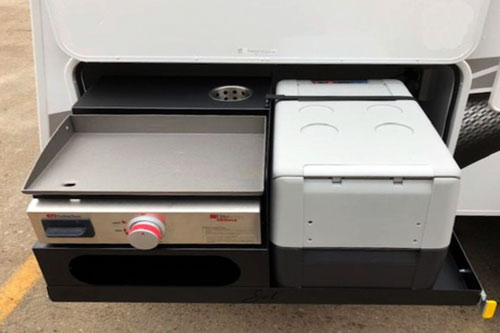

Exterior slide-out kitchen

Options

  • 10 ft, manual Thule awning
  • Slide-out kitchen
  • Fridge for slide-out kitchen

      It may be worth to mention that the “beauty” of Sol’s design is also coming from the fact that almost all features come standard. The only options are awning and external slide-out kitchen w/grill and fridge. As the result, trailer’s dry weight is pretty much fixed leaving known number of free pounds for cargo.

InTech Sol ultra-lite travel trailer

Summarizing: while InTech’s Sol is a newcomer on the RV-market, since it’s late-2018 launch it already makes “waves” among RV-ers. This medium-size, ultra-lite travel trailer meets towing ratings of most popular SUV. On top of that (what is equally important for RV-ers, it is very stylish, thoughtfully designed, generously equipped and very bright inside what makes it “visually” spacious despite its real dimensions.

Go back to: --> Top Lightweight RVs

or to: --> Sol Ultra-Lite Travel Trailer: Part-1

Note: Most pictures are courtesy of InTech RV

Note:  Check with the manufacturer and/or authorized RV Dealer for the up-to-date list of features, options as well as latest specifications. These written above may not be accurate and certainly are subject to change by the factory.  We are not responsible for any inaccuracy, the above text is provided only for the general information.
