Venture’s Sonic SN220VRB Specifications & Features

Venture’s Sonic ultra-lite travel trailer SN220VRB: specifications, features and pros and cons….

       Our selection of the model Sonic SN220VRB out of series of Sonic and Sonic-Lite travel trailers was determined by several of its characteristics. These include ample living space, well-thought design, much sought and widely appreciated features promising comfortable RV-ing (like for example an exterior slide-out kitchen), as well as enclosed underbelly and tandem axle (for easy towing and maneuverability).

Venture's Sonic: Model SN220VRB

If you missed the first part of this presentation (detailed description, strong and weak spots, pictures etc....) go to the first page:

--> Venture's Sonic Ultra-Lite Travel Trailers: Part 1

Otherwise, please continue with the detailed technical specifications, standard features, options and summary for the model SN220VRB

Specifications SN220VRB:

Exterior length

Exterior height (w/AC)

Interior height

Exterior width

Dry weight (UVW)

Dry hitch weight


Cargo load

Fresh water tank

Grey water tank

Black water tank









4,460 lbs

420 lbs

5,200 lbs

740 lbs

38 gals

30 gals

30 gals

2 x 20 lbs


13 ft

4 (2 +2 kids)

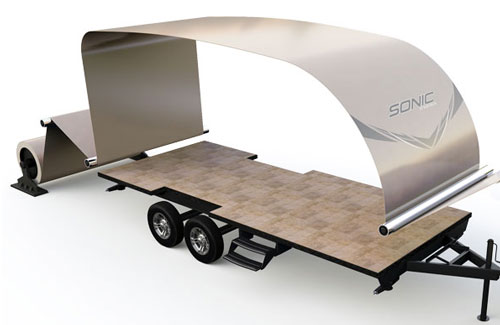

All Sonic models share seamless roof ("bumper-to-tongue" design)

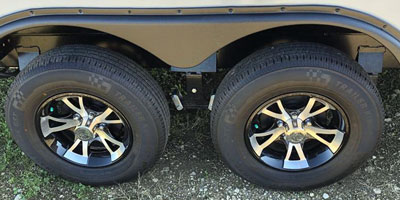

Tandem axles (here wheels with optional polished aluminum rims)


  • Frame: NXG, highly-engineered High-Strength Low Alloy Prime Steel, CNC-welded, Huck Lockbolts fastened
  • Chassis: BAL’s E-Coated & Epoxy Painted Huck Bolted aluminum (front cap wood rafters)
  • Floor: 5/8" Plywood
  • Exterior: Two-Tone White & Grey laminated Fiberglass, Diamond plate rock protection at front.
  • Insulation: R-14 fiberglass (5-sides), Radiant Foil Barrier (underbelly)
  • Underbelly: Enclosed, forced-air heated
  • Axles: Tandem w/auto-adjust brakes and EZ lube hubs
  • Wheels: 14” nitrogen-filled radial
  • Windows: Tinted safety glass

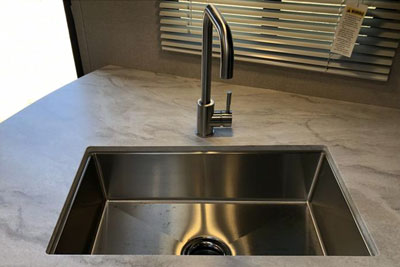

Kitchen's stainless-steel sink


  • Mountain-walnuts finished cabinets
  • Stainless Steel Accented Appliances
  • LED lights throughout
  • Pleated nightshades
  • Designer valances
  • Linoleum floor (Optional: Woodgrain-pattern)
  • 2 speakers
  • Skylight in the Living Area


  • Walk-around Queen-size bed (75” x 60”) w/foam mattress (optionally Murphy Sofa/Bed)
  • Two shirt cabinets w/ hanging bars
  • Overhead and under-bed storages
  • LED lights
  • Power outlet and USB ports
  • Privacy curtain

Both- sink and cook-top have flush leads

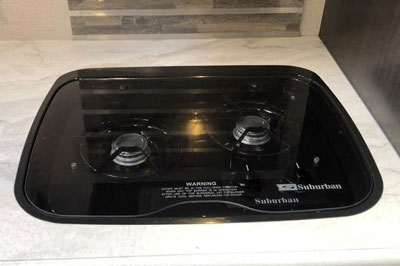

2-burner Cook-top

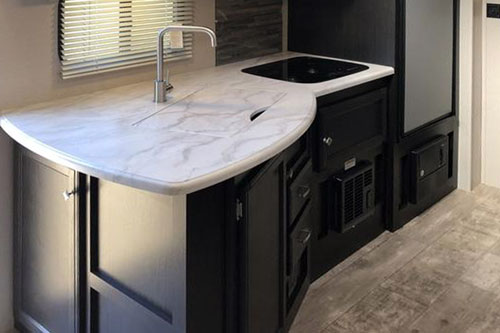

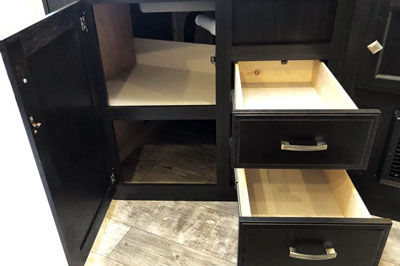

Kitchen cabinets

Kitchen/Living area

  • 2-Burner Cooktop w/flush glass cover
  • Vented Range Hood w/Light
  • 7 cu. ft. Double Door Refrigerator
  • Convection Microwave (Option)
  • Large undermount stainless-steel sink w/cover
  • Kitchen cabinets w/roller-ball bearing drawer guides
  • Overhead kitchen cabinets
  • Seamless countertop w/designer backsplash
  • U-shaped dinette w/under-bench storage places (Dinette convertible to 88” x 48” dual bed)

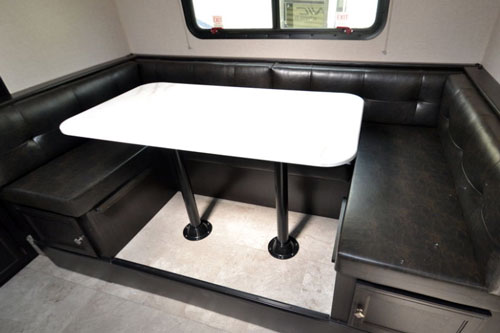

Dinette in slide-out unit

Walk-in Bathroom

  • 34” Radius shower w/glass doors
  • Vanity w/sink
  • Porcelain, foot-flushed toilet
  • Large linen cabinet w/sliding mirror doors
  • Medicine cabinet
  • Power exhaust fan

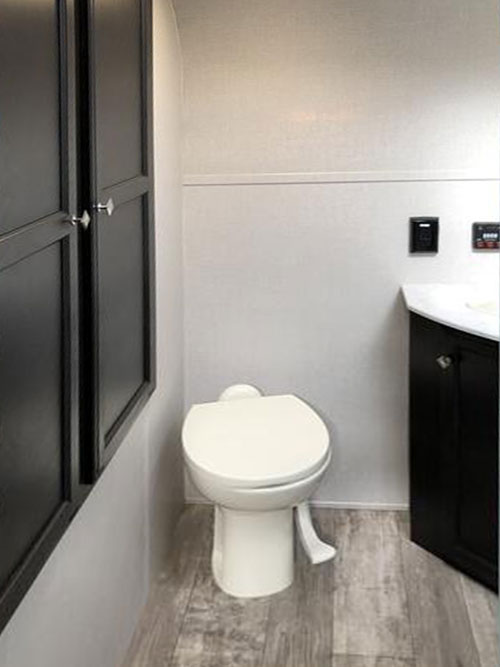

Fragment of the bathroom: on the left the large linen cabinet

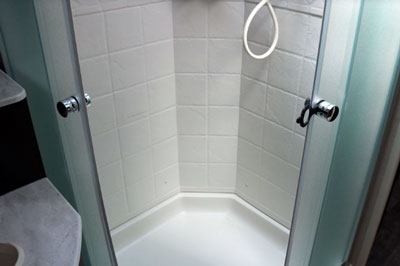

Shower cabin


  • LED TV w/Swing Arm Bracket (option)
  • Furrion AM/FM/DVD/CD/MP3 Stereo with Bluetooth w/remote


  • 2 x 20 lbs tanks w/Auto Changeover (optional: LP Bottles Cover)
  • Quick LP Connect
  • 13 ft manual awning (power w/LED lights is an option)
  • Double entry step w/blue LED lights
  • Pass-through storage w/magnetic latch doors and motion-activated lights
  • LED lighting
  • Friction-hinge entrance door
  • 4 Angled Scissor Jacks w/ Foot Pads
  • 4" Tube Bumper Sewer Hose Storage
  • Fender Guards

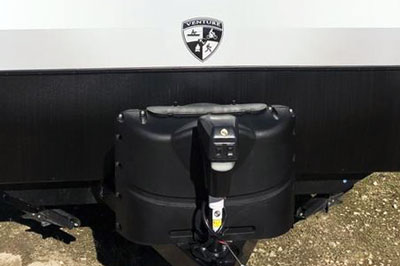

Power tongue jack and LPG container

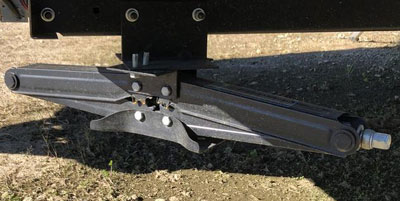

Manual, angled Scissor Jacks


  • 2 interior and 2 marine-grade exterior speakers
  • Porch light
  • Marine-grade detachable Power Cord w/Light
  • Water tanks Monitor System
  • Battery Disconnect Switch
  • Furrion Solar Panel and Backup camera preps
  • Cable and Satellite hookups
  • SafeTek® Box w/110V power and USB Charging port
  • 110V/ outlets
  • Wall-mounted central thermostat

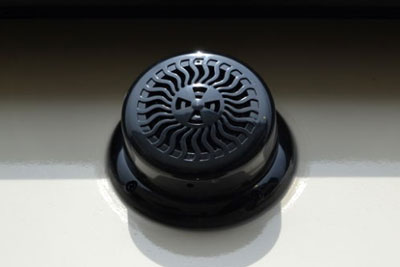

Exterior speaker

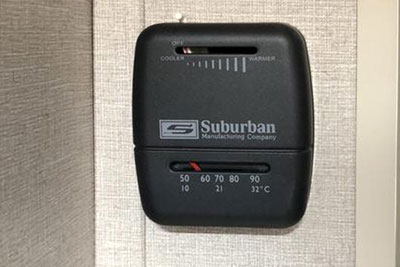

Wall-mounted thermostat


  • 6-Gal Gas/Electric DSI Water Heater
  • Exterior Shower w/Hot & Cold Water
  • Water Heater Bypass Valve
  • Water hookups (fresh, city)
  • Black Tank Flush (option)
  • Exterior stainless-steel farmer sink w/hot/cold water (option)

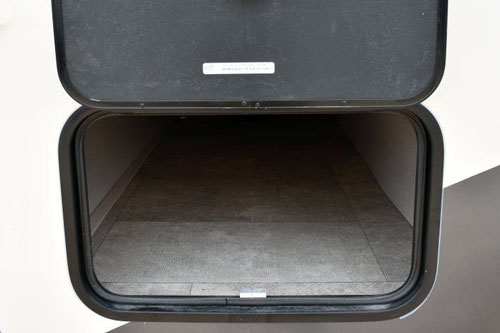

Pass-through storage

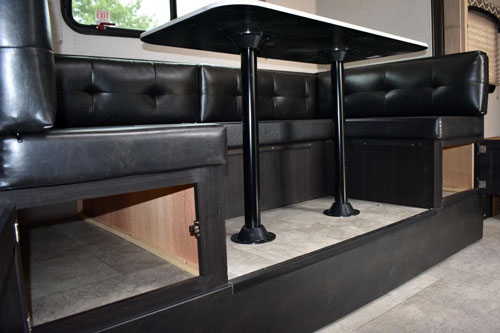

Interior storage under both benches

Climate control

  • Roof-mounted A/C (option)
  • Furnace 20k BTU ? (forced-air) (option)


  • Keyed-Alike Key System
  • Spare Tire, Carrier & Cover (option)
  • Alarms /Detectors (? As expected by law)

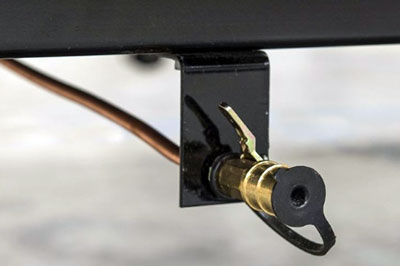

Quick LPG Connect


  • Power Awning w/LED lights
  • 12.5k BTU or 15k BTU A/C  (roof-mounted)
  • Murphy Bed w/Sofa (instead of queen-size bed) & Upgraded Mattress
  • Swing-Away Bumper Mount Grill
  • Convection Microwave
  • LED TV w/Swing Arm and Bracket
  • Lighted Power Tongue Jack
  • High Polished Aluminum Rims
  • A-Frame Bike Rack
  • Furrion Backup Camera
  • Venture Bottle Opener/Doggie Tie Down
  • Solid Flip-Up Step
  • Swing Away Grab Handle w/LED lights
  • Screen Shot Spring Screen Door
  • The LevelMatePRO (calculates and displays info to perfectly level the camper)

Summarizing: Venture’s Sonic travel trailers are certainly leading examples of lightweight RVs. Given their construction characteristics, technical parameters (weight and length) as well as features, they stand high among other this category models of RVs.

        Obviously, “Lightweight” design has its limitations. Some goals can be achieved thanks to lighter, modern construction materials, their higher strength (so smaller profiles) etc.  But some you have to trade-off, and these are usually features as each one may make the RV more residential-like, but the price you pay for it is the increased RV’s weight. That’s why several manufacturers offer many features as options, so it is up to customers to decide (trade-off) level of comfort with weight. And the weight directly translates into towing capabilities of your vehicles and by that – potentially forcing you to buy the new, more powerful vehicle that otherwise you may not need at all.
