Terra Oasis Specifications High-End Travel Trailer

Terra Oasis Specifications: revolutionary concept of all-aluminum frame & chassis, distinctive Tilt Forward Design and residential touch

The full description as well as abundance of pictures of InTech's Terra Oasis you will find on the previous page:

--> InTech Terra Oasis Travel Trailer

Below, you will find the technical specifications as well as construction details, list of standard features and options as well as summary of Terra Oasis review.

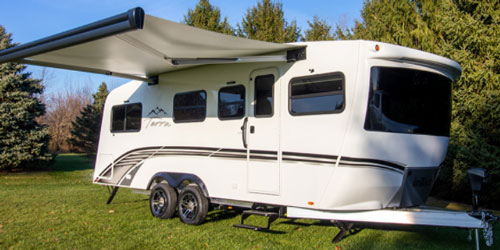

InTech's Terra Oasis - here with deployed power awning

Specifications


Exterior length

Exterior width

Interior width

Exterior height

Ground clearance

Interior Headroom (1)

Ball height

Dry weight UVW (2)

Cargo capacity (2)

GVWR

Hitch weight (2)

Freshwater tank

Greywater tank

Blackwater tank

LPG

Awning

Sleeps (3)

26’

100”

96 1/4”

10’4”

13.5”

83.5”

21"

5,650 - 5,850 lbs

1,650 -1850 lbs

7,500 lbs

725 -790 lbs

44 gal

39 gal

39 gal

2 x 20 lbs

Yes

4


1. Bedroom and kitchen/living space (lower headroom in the bath, shower, and passage between the living area and bedroom

2. 5,650 lbs w/standard features

3. When the dinette is converted into the bed (93” x 48”)

Construction

  • Chassis: Aluminum
  • Shell: all-tube, fully welded aluminum cage frame, fiberglass skinning
  • Roof:  One Piece Fiberglass
  • Insulation: R-7 Bubble foil (walls & ceiling)
  • Underbelly: Closed and heated
  • Axle: Dual, Dexter Torsion
  • Wheels: Aluminum rims w/ST205/R75/R15 Tires
  • Brakes: Electric
  • Windshield: 3-ply laminated, tinted glass
  • Windows: tinted glass
  • Coupler 2 5/16" Ball
  • Layout: Front dinette/rear bedroom

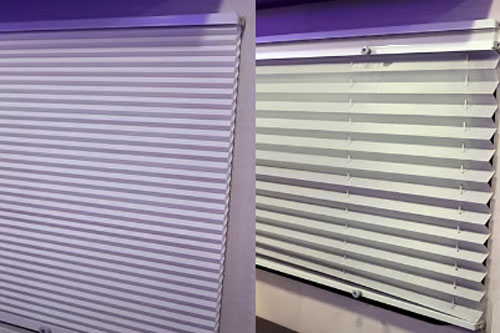

Night (left) and day (right) window shades

Interior Features

  • Infinity Woven Flooring
  • Panoramic tinted-glass windshield
  • 6 side windows w/day & nightshades (2 x dinette, 2 x bedroom, 1 x kitchen, 1 x bath)
  • 1 x rear window
  • Soft-close, latching, cabinet doors.
  • Day & Night window shades
  • Ducted AC and heating systems

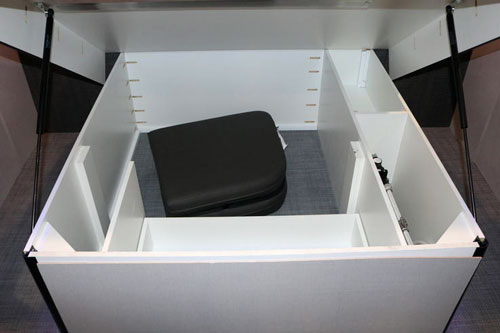

Under-bed storage

Bedroom

  • Walkaround queens-size bed (80” x 60”) w/upholstered headboard and under-bed storage
  • 6 x overhead cabinets
  • 2 x overhead cupboard cabinets w/elastic bands protection
  • Closet w/hanging hooks,
  • 2 x nightstand w/cabinet (2 x shelves), table and drawer
  • 3 x Cupboard Cabinet (one w/countertop)
  • 32” TV w/swivel arm
  • Outlets 2 x 12V USB and 2 x 120Vac Outlets
  • Reading lights
  • Accent lights
  • Thermostat
  • MaxxAir Vent Fan
  • 3 windows (2 side windows can be opened)
  • Sliding door

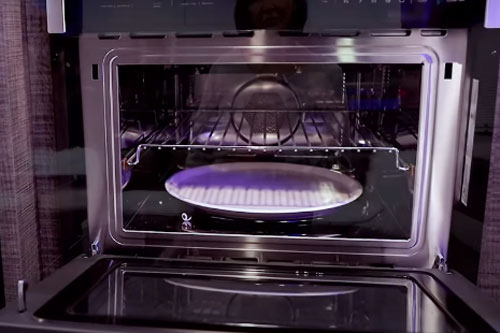

Convection Microwave

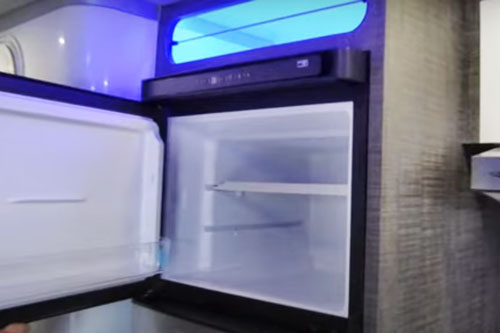

Separate freezer

2-burned cook-top w/iron grid

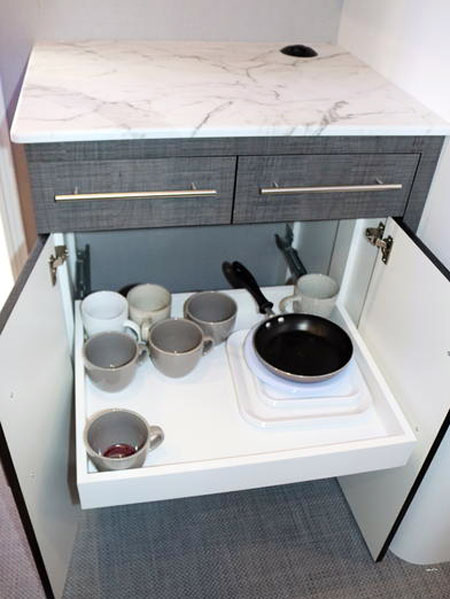

Pantry

Kitchen

  • Flush-mounted, 2-burner stainless steel cooktop w/iron grid and glass lid
  • 10 cu ft 12V compressor-driven refrigerator w/separate freezer
  • 7” deep, farmhouse-style, brushed-aluminum sink
  • High-rise nickel faucet w/spray
  • Stainless-steel hood w/vent and lights
  • Convection microwave
  • Kitchen cabinetry (under-the-sink and overhead)
  • Pantry w/countertop and pull-out trays

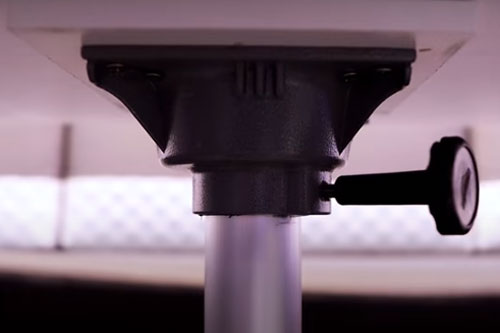

Dinette's table support leg

Living Room/Dinette

  • U-shaped dinette convertible into a bed (93” x 48”)
  • Rotating table
  • 3 x overhead cabinets w/latching doors
  • 2 x overhead cupboards w/elastic bands protection and LED accent lights
  • 2 side windows
  • 1 x panoramic window (windshield)

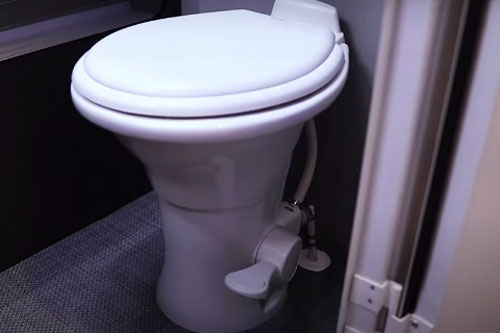

Porcelain toilet

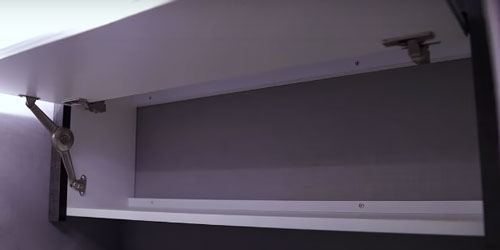

Overhead, storage cabinet

Bathroom

  • Bath size: 33” x 31”
  • Porcelain toilet w/food flush
  • Brushed aluminum sink and faucet
  • Under-sink cabinet w/countertop
  • Overhead cabinet (6” deep)
  • Large mirror
  • Towel bar
  • Window
  • Roof vent
  • 2 x 110Vac outlet

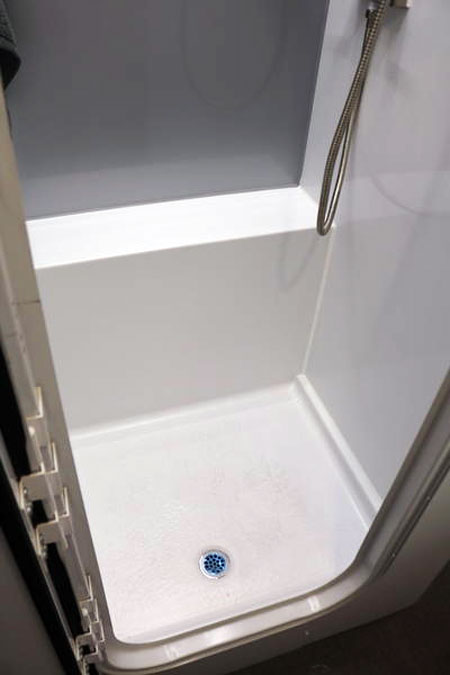

Shower shelf/bench

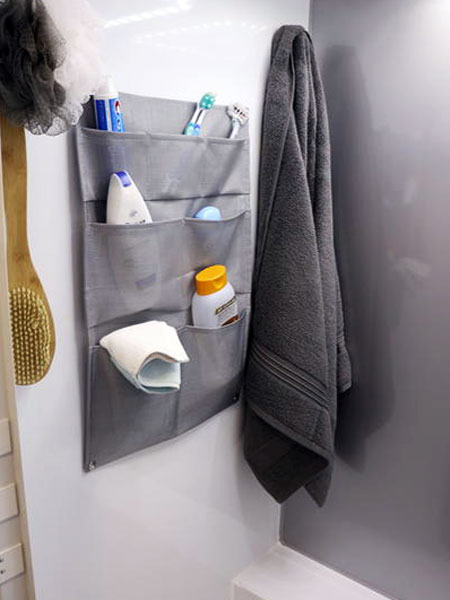

Mesh-pockets

Shower

  • Adjustable showerhead
  • Shelf/seating space
  • Roof vent
  • Storage mesh pockets
  • Towel hooks
  • Door-mounted mirror
  • Gasket-sealed door

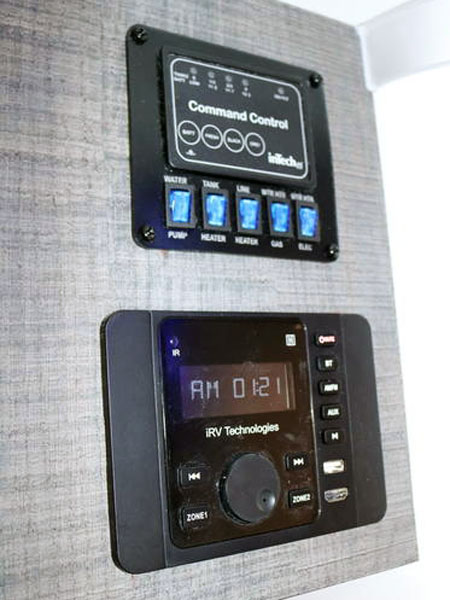

AM/FM/Bluetooth Stereo w/UBS & HDMI ports (Above: Central Control Panel)

Entertainment

  • Living room 32” TV w/swivel arm
  • FM/AM Stereo w/Bluetooth, USB & HDMI ports
  • 4 interior speakers
  • Bedroom TV w/swivel arm
  • Cable hook-up

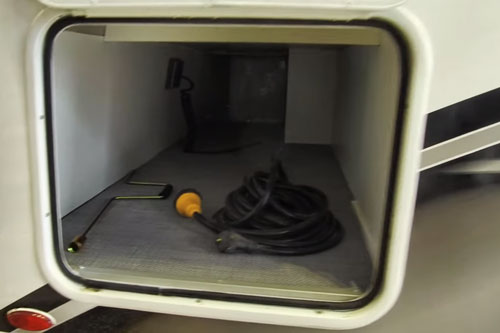

Pass-through storage compartment

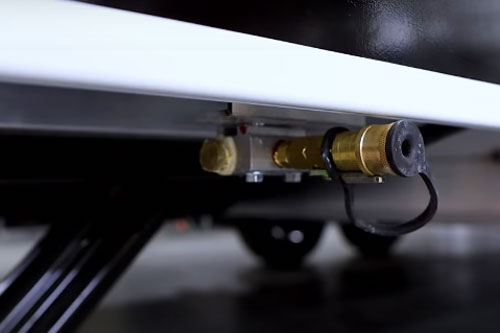

LPG quick connect hook-up

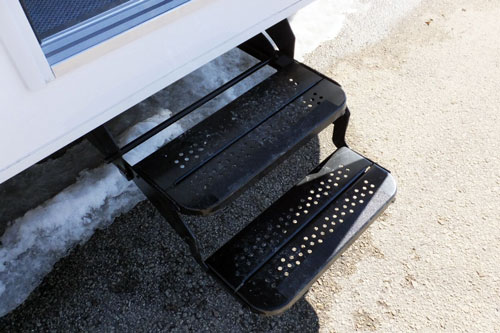

Fold-away entrance steps

Exterior Features

  • Power tongue jack
  • 4 x manual stabilizing jacks
  • 14 ft Power awning w/winds sensors
  • Pass-through storage compartment
  • Side storage compartment
  • Front Windshield Cover
  • 2” Rear receiver (100 lbs capacity)
  • LP quick-connect hook-up
  • 2 x 110Vac outlets
  • 2 porch lights and 2 x 110Vac outlets
  • Fold-away double step
  • LPG storage compartment (2 x 20lbs tanks)
  • Water sprayer

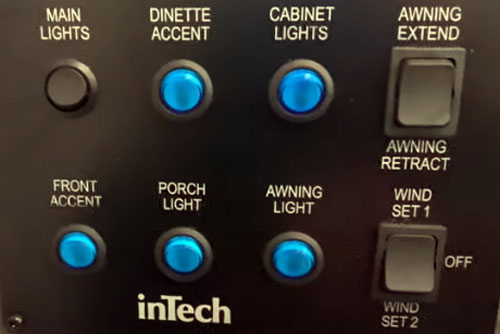

Lights and awning control panel

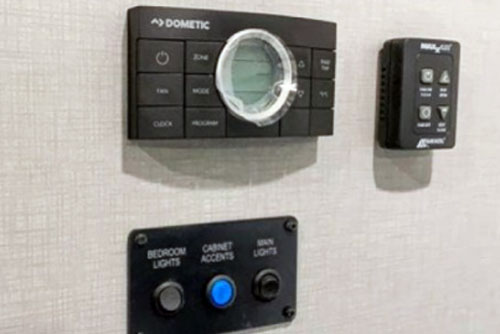

Bedroom wall: Thermostat, Lights switches and ceiling fan control

Electrical

  • 2 x AMG battery
  • Inverter
  • Shore hook-up (35 amps)
  • Solar hook-up (Zamp Solar)
  • 110Vac outlets (bedroom, kitchen, bath, exterior…)
  • 12V USB outlets (bedroom, kitchen)
  • Cupboards LED accent lights (blue)
  • LED lights throughout
  • 2 x porch lights
  • Front cap blue accent light

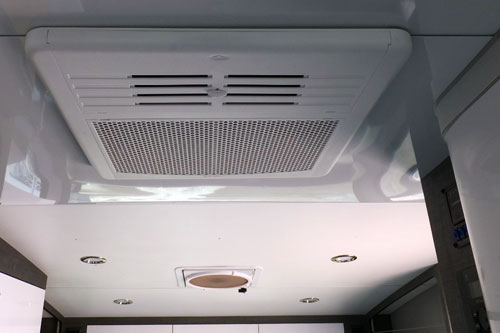

Ceiling-mounted A/C unit

Climate Control

  • 25k BTU furnace
  • 15k BTU, ceiling-mounted ducted AC unit
  • MaxxAir vent fan
  • Tank Insulation Heated Underbelly & 12V Line Heaters & Tank Heat Pads

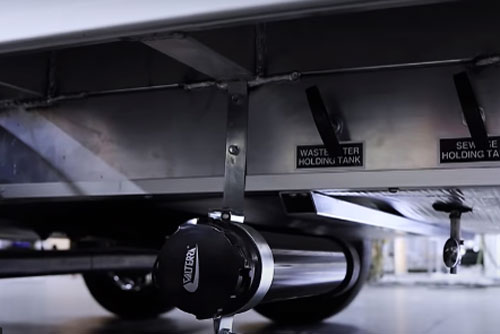

Wastewater valves (Gray and Black) and the drain pipe

Plumbing

  • 6 Gal DSI water heater (Electric or Gas)
  • Fresh and wastewater (Gray & Black) tanks
  • Fresh and city water hook-ups
  • Water sprayer
  • Sewer hose holder

Safety

  • Alarm and sensors (smoke, CO & propane)
  • Under Mounted Spare Tire
  • Rear video-camera prep

Options

  • Slide-out Rear Kitchen (Blackstone Griddle, fridge…)
  • Side utility shelf

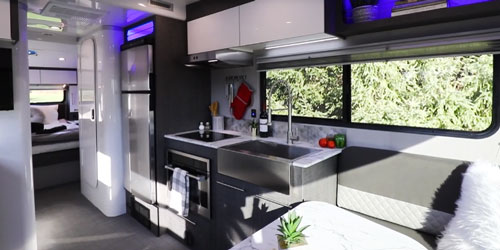

Interior view

Summary: The Terra Oasis belongs to the class of high-end travel trailers. Despite its size of just 26 ft, thanks to the well-thought design, quality of work, and well above average finish, it offers a sort of residential-like feel.
