The 2018 model of Lance 1575 is a modern, well-engineered medium-size travel trailer with attractive floor-plan, elegant and practical set of features and amenities and a lot of storage space..


        If you did not have a chance to first read description of the Lance 1575 travel trailer, I would suggest to first visit the page:

-->   Review of Lance 1575 Travel Trailer.

You will find there the description of the newest, 2018 model -  its pros and cons supported by “illustrating the reality” pictures. Certainly, it will help you to get better feeling why we selected this model as one of the top medium-size RVs for the year 2018.

Below you will find trailer’s  technical specifications, construction details as well as up-to-date (as of the time of writing) list of standard and optional features.

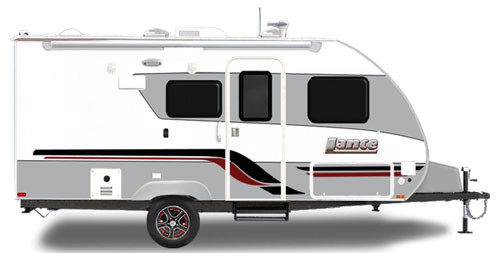

Above and below: Lance 1575 Travel Trailer: Model 2018

Specifications


Overall length

Interior length

Width

Exterior height

Interior headroom

Dry weight

Cargo

GVWR

Hitch weight (1)

Fresh water tank

Grey water tank

Black water tank

LPG

Slide-out (2)

Awning (3)

Sleeps (4)

20’5”

15’9”

84 ¾”

117”

78”

2,650 lbs

1,050 lbs

3,700 lbs

225 lbs

26 gals

26 gals

25 gals

20 lbs

1

1 ((2)

4


1. Dry weight configuration

2. It is “deep” slide-out

3. Patio (optional) and slide-out topper (standard)

4. With dinette converted into double-size bed

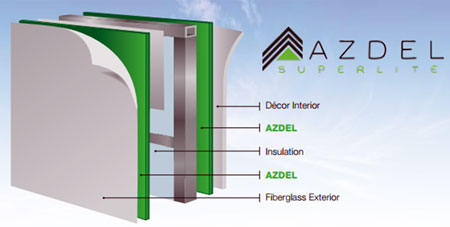

Structure of an Azdel Panel (source: Lance)

Construction:

  • Chassis: powder-coated, tempered steel w/Huck bolts (no welds)
  • Shell: aircraft-grade aluminum extrusion frame (floor, sidewalls and roof)
  • Walls: Azdel substrate panels w/ bonded-laminated fiberglass exterior, stainless-steel fasteners
  • Roof: Energy-star rated PVC (Polyvinyl chloride)
  • Insulation: Foam blocks (floor & ceiling)
  • Windows: Euro-Radius Acrylic Thermopane
  • Protection: TPO front cap and lower front gravel guard
  • Suspension: HD rubber torsion bar
  • Brakes: Electric, self-adjusting
  • Wheels:   Aluminum rims w/ST205/75R14 tires

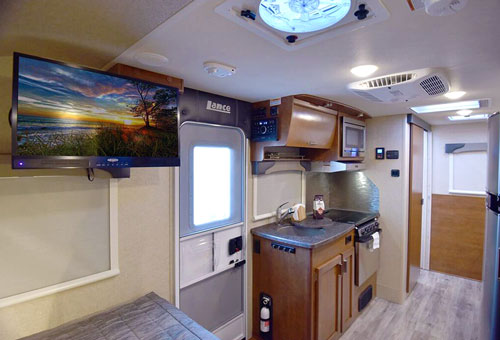

You can see it all: elegant "rounded" overhead cabinet and "small details" like under-mounted spice shelf, key hanger on the kitchen cabinet next to the door...

Ward with the bar for hanging cloths

Standard Features

Interior

  • Décor (Midnight, Passage or Roadster)
  • Skylights (living area/galley, shower)
  • Screen/Shade combos on windows
  • Light-ply cabinets w/hardwood-framed flat panel doors
  • Surf-X Suedo solid-surface countertops and table(s)
  • Ward w/hanging bar and shelves
  • Wall clock
  • Key hanger

Bedroom

  • Queen-size innerspring mattress (60” x 80”) w/pillows & bedspread
  • LED reading lights
  • 3 large windows
  • Shelf
  • Electrical outlets (110Vac/12Vdc/USB

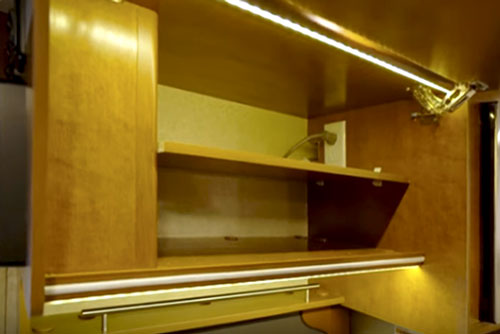

Kitchen overhead cabinet

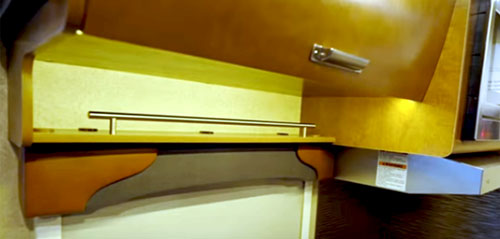

  ... and very handy, under-mounted spice shelf

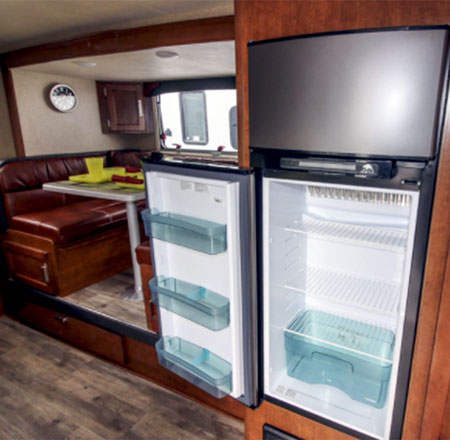

Extra large 2-doors fridge

Kitchen

  • 3-burner stainless-steel range w/flush-mounted black-glass cover (optional high-output range w/oven)
  • Stainless-steel hood w/fan and lights
  • 5 cu.ft 3-way refrigerator w/separate freezer (double door)
  • Built-in microwave oven (optional)
  • Round sink w/cover
  • Single-lever faucet w/pull-out sprayer
  • Euro-style overhead cabinet with under-mounted spice-shelf
  • Under-sink cabinet (storage compartment & drawers) w/solid countertop and backsplash
  • U-shaped dinette w/corner overhead cabinets (convertible to 46” x 78” bed)

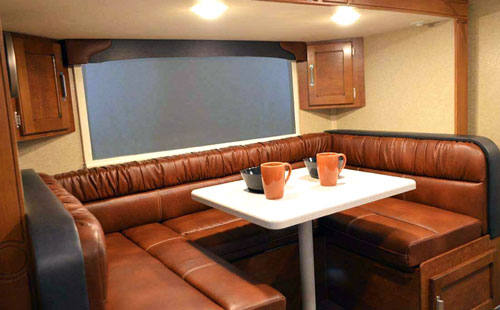

Dinette (note two overhead corner cabinets)

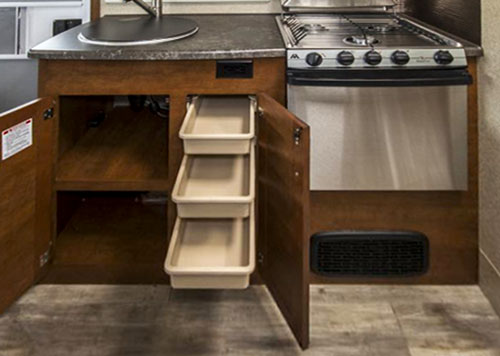

Kitchen cabinet: combination of shelves and sliding-out containers

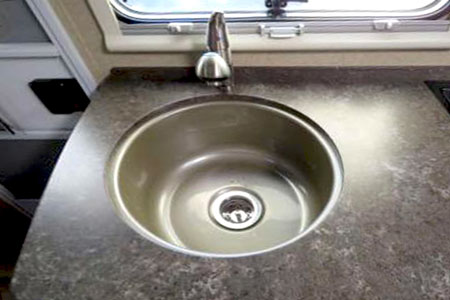

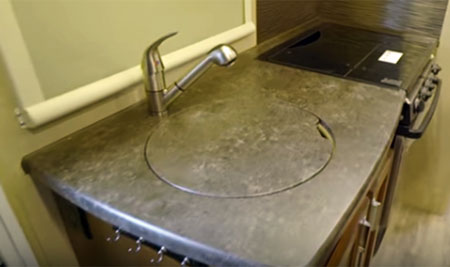

Under-mounted round kitchen sink comes with the lid

Bath

  • Shower with vinyl curtain w/tieback
  • Marine, plastic toiled w/ foot-flush
  • Medicine cabinet w/mirror
  • Towel rod
  • Dual-pane skylight
  • Ceiling vent

Climate control

  • 18k BTU forced-air furnace
  • Roof vent (bed 7 living area) and Fantastic Vent prep
  • Choice of roof-mounted A/C (9k, 13.5k or 15k BTU – all optional)
  • Fantastic roof-vent (Option)

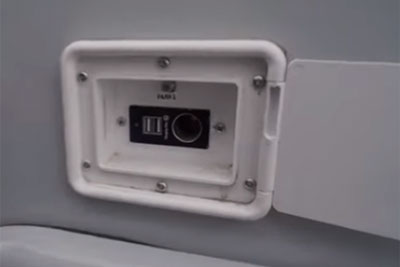

Exterior TV hook-up also includes USB ports

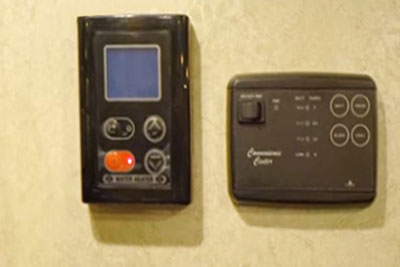

Fragment of the control panel (left - Water Heater , right - water tanks control and monitoring)

Electrical

  • Battery compartment w/quick-disconnect switch
  • 45A Converter w/battery charger
  • AM/FM/DVD/CD/USB Bluetooth Audio System w/App Control (int & ext speakers)
  • 110Vac/12Vdc/USB outlets (int/ext)
  • Exterior TV prep (110V/12V/Cable)
  • External LED lights (3-way patio, entrance step, awning, docking light…)
  • Interior LED lights (dimmed in dinette, reading in bedroom, individual ceiling lights….)
  • System Control & Monitor (switches, LD battery indicator, water tanks levels, water heater temp, thermostat …)
  • Fantastic Vent prep
  • Solar charging port for portable panel(s)
  • Solar prep for roof-mount panel (optional)
  • HD TV Antenna
  • Exterior TV-prep w/puck for a bracket
  • 160W roof-mount solar panel (Option)
  • 24” 12V TV LED (Option)
  • Back-up camera w/wireless monitor (Option)

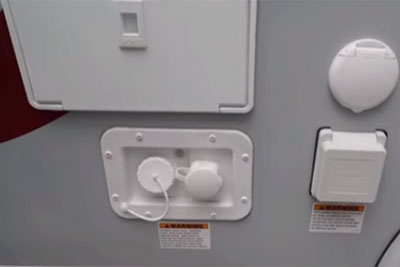

Exterior shower compartment and just below water hook-ups (city and fresh). What we do not like is located very close shore power plug (on the right). It's too close especially to the shower

Water/Plumbing

  • Tankless Water Heater w/winterizing valve (or optional DSI gas/electric 6 gallons Water Heater)
  • Water Pump w/in-line filter
  • Enclosed, insulated and heated fresh water tank
  • Black tank flush
  • Water hook-ups (city, fresh)
  • Exterior shower w/hot & cold water
  • Grey/Black water tanks drains

Exterior Features

  • 20 lbs LPG tank w/molded fiberglass cover
  • Single aluminum entry step w/LED lights
  • LP quick-connect
  • Manual tongue & stabilized jacks w/foot-pads (Power tongue jack is optional)
  • Spare tire carrier w/wheel lug wrench
  • Storage compartment doors w/magnetic latches
  • Slide-out awning topper

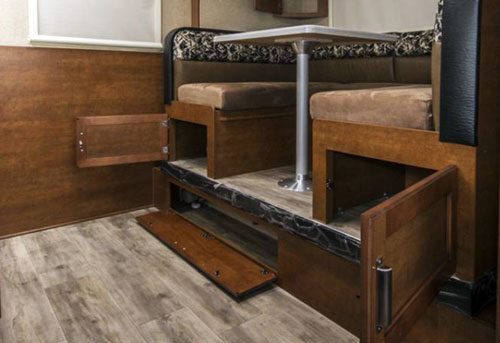

Dinette: two under-seat storage areas and one long under-the-floor

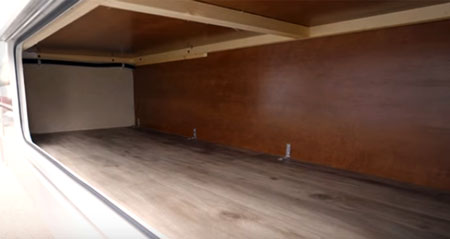

Exterior storage in the dinette's slide-out

 .... and the pass-through storage space at the front

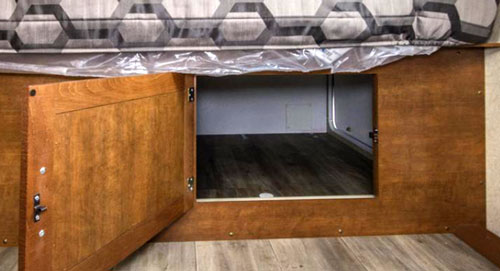

The pass-through storage has an access from the interior

Extra Storage

  • Large exterior front pass-through compartment w/optional tray and interior access
  • Large exterior slide-out compartment
  • Dinette under-seats storage (2)
  • Interior under-dinette storage
  • Dedicated storage for black-tank hose

Security

  • Fire Extinguisher
  • Alarm/Monitor (smoke, CO, LP)
  • Spare tire (option)
  • Keyed/keyless lock system (option)
  • Swing-out Entry Assist Handle (option)

Options

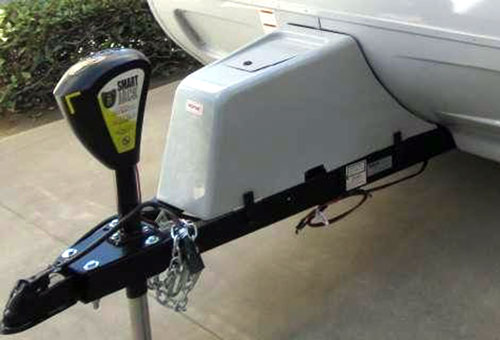

Tongue: Note the aerodynamic compartment for LPG bottle (here also seen an optional Power Jack)

  • Coleman roof-mounted A/C unit w/wall control (choice of low-profile 9k, 13.5k or 15k BTU)
  • Stainless-steel microwave oven
  • Flush-mount stainless-steel 3-burner High Output range w/oven and black glass cover
  • Back-up camera w/wireless monitor
  • Fantastic roof-vent
  • 160W solar panel
  • 24” 12V TV LED
  • 12 ft power awning w/LED
  • Power tongue jack
  • Keyless entry w/ key fob
  • Pull-out storage tray
  • Spare tire
  • Swing-out Entry Assist Handle

Summarizing: Lance 1575 is a modern and stylishly finished, well-designed medium-size travel trailer offering all most important features and amenities with tons of extra storage space. Given its technical characteristics and advanced engineering, very practical floor-pan as well as elegant, almost “residential-style” finish we put it on our list of top, medium-size RVs for 2018.

If you want to see review of other models selected as top RVs for 2018, please go to: --> Review of top affordable RVs for 2018

Note:  Check with the manufacturer and/or authorized RV Dealer for the up-to-date list of features, options as well as latest specifications. These written above may not be accurate and certainly are subject to change by the factory.  We are not responsible for any inaccuracy, the above text is provided only for the general information.
