Introduction to modern trucks campers, their pros, cons, review of best models and questions and answers culminating with: are TCs for you?
Truck campers (TC) make a class of recreational vehicles designed to be carried in the bed of trucks. In more practical words, truck campers can be described as wheel-less/frame-less “inhabitable boxes” (RV shells) designed mostly for popular pick-up trucks. Thanks to the system of corner jacks (manual or power) they can be easily installed in the bed of the truck and similarly easily removed from it. In another contrast to all other RVs, they cannot be used on the campground as “stand-alone” units (like for example also designed for pickup trucks - Fifth Wheels) or any trailer as the matter of fact. The jacks are designed only for support (when in truck’s bed) and storage (when removed), but they cannot support camper’s full dynamic weight for off the truck living. Note that the TC’s box (unlike any other traditional rig) does not have self-supporting bottom frame that can sustain the load, it’s frame makes truck’s bed.

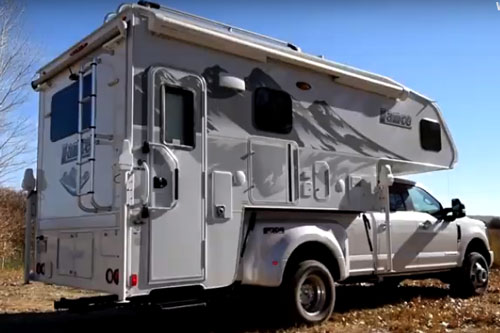

Lance 650 short-bed truck camper
In a way, the popularity of truck campers reflects rather the popularity of pickup-trucks that undoubtedly make important part of small family businesses. No wonder then, that the RV industry came up with practical solution for nature & vacations hungry army of pickup-truck owners. Out of two classes of RVs especially designed for pickup-trucks: fifth wheels and truck campers, the latter class (even in their luxurious versions) represent the “lower-end” (weight, space and cost-wise).
So, once you are on this page, we assume that in fact you own the pickup-truck and you are “almost convinced” that your next RV will be a truck camper. The only matter is which one. We are here to help you in this task.
For understandable reasons, we will first shortly classify the series of most popular pickup-trucks. Obviously ((unless you want to buy a new truck), the truck camper must fit within the limits of bed’s length and cargo capacity of your existing pickup truck.

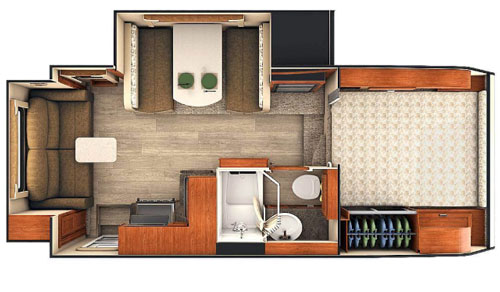

Lance 1172 long-bed truck camper: floor-plan

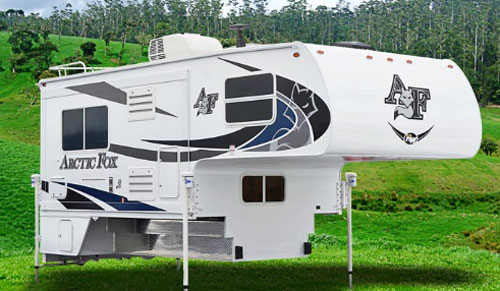

Arctic Fox 1150 all-seasons truck camper
If the above classification was not already a bit “confusing” then this one specifying the load capacity certainly is. Popular classification like half-ton, ¾ ton and 1-ton pickup truck has only historical meaning as these numbers by no means represent the original cargo capacity. These days pickup-truck are rather classified based on their name and series they belong to like Ford F-150, 250, 350…. or GMC 1500, 2500, 3500…. They only very roughly follow the old classification of half-ton, ¾ ton and 1-ton pickup trucks.
Bottom line is that based on vehicle’s User Manuel or information from the dealer you must calculate the maxim cargo capacity based on vehicle’s GVW (Dry weight), GVWR (maximum weight rating), RGAWR (maximum rating for rear axle(s)), weight of full fuel tank and of all passengers including the driver. On the other side of the equation, the cargo must include not only the dry weight of the Truck Camper but also all fluids (water-holding tank(s)) and extra supplies (food and “stuff” etc…).
For details see: --> Understanding Towing & Cargo Ratings
While theoretically, the pickup truck should be originally equipped with tires and braking system rated for its maximum GVWR rating, in practice it may not be the case (especially if the original tires were already replaced, are used (in poor shape) or not rated for off-road environment. Note, that tires and brakes are frequently main factors determining the safety of RV-ing.
Classification of truck campers

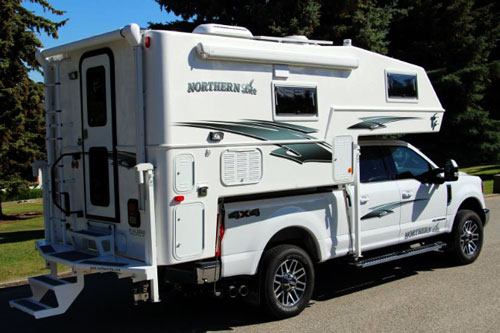

Northern Lite short-bed all-fiberglass truck camper: Model 8-11EX
It is the most traditional class of TCs. They are either made as molded fiberglass shells (horizontally-joined clamshell-construction), all-aluminum frames with aluminum or fiberglass-finished siding, and more rarely as metal/wooden structures with laminated walls.

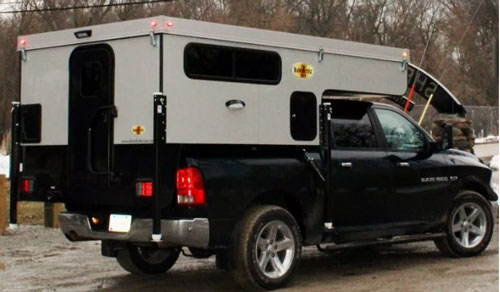

Bundutec pop-up truck camper
Courtesy of BundutekUSA
These low-profile truck campers are especially designed to improve truck’s handling on highways (better aerodynamic profile) and in no-road environment (better stability due to lower center of gravity). Usually, the solid roof of the pop-up TC can be raised/lowered increasing the interior headroom by about 1/3 when in camping configuration and correspondingly lowering for road. The exposed side-walls (typically with ventilation windows) may have one of two different structures: solid or soft. Overwhelming majority of pop-up truck campers come with soft upper walls (canvas-based). Mostly only those designed for 4-season RVing, due to the need of better insulation, are designed with hard upper walls. The pop-up track campers (regardless the version) are usually more spartan models than their solid-walls counterparts. But they nicely meet many requirements of nature lovers attracted by wilderness.
Due to technical challenges, slide-out modules are relatively new addition in truck campers (they came in late 90’s). Needless to say however, that these days due to multiple slide-out modules (you will find on the market models with up to 3 slide-outs), truck campers can offer much sought residential ambiance (living space with entertainment center, lounge with sofa etc…) as well as bath with toilet and shower.
Note that slide-out units are available only in hard-wall truck campers with full frame structure (so-far not possible in pop-up TCs and frame-less molded-fiberglass models).
While baths are relatively new additions in our homes (compared to millennia of human civilizations), today they are indisputably considered as a must in any home, including the one “away-from-home”. It will be also difficult to convince any RV-er (especially boondocking) that the Mother Nature with solve all problems. So, what options you will find in truck campers?
Thetford Cassette toilet: Model C402C
Are Truck Campers for You?
These days truck campers can offer most of amenities that in the past were reserved only for larger RVs (historically, truck campers were designed as sort of poor-guy, easy to move “cabins” mostly for solitary fishing and hunting weekend trips). Well, these times are long gone and now TCs offer not only comfortable sleeping area but also galley w/ stove, fridge, microwave and cabinetry, holding tanks, propane heater, dining and living space and quite often bath. With traditional frontal cabover (sleeping place) and rear overhang section (as well as slide-out module(s) in some TCs), modern-day truck campers made the long way from their original and let’s face it – very modest ancestors from 50’s-60’s.
Given the fact that pick-up tracks by definition have ability to drive off-beaten roads, many truck campers are also designed for off-road environment (strengthened, corrosion & rot free structure etc…). However, to make it clear – in general, the pickup-trucks loaded with TCs are not the best suited for extreme off-road conditions (specialized pull-behind trailers will do much better).
The bottom line is – TCs are perfect solution for owners of pickup trucks that for limited time want to leave behind their residence (with all its ambiance) and spend time in nature more like old time backpackers and tent campers. In such case the off-the ground truck camper provides enough of comfort and security (much more than a roof-top tent), is affordable (especially if you already own the pickup-truck), provides weather protection, high level of mobility (including no-roads environment) and some level of energy and water autonomy needed for boondocking.
If this is your case, look for traditional truck campers (no bells and whistles), just what you need, (pop-up roof version may be better for out into the Mother Nature trips).
While modern-day truck campers can sleep even 5-6 people, in reality they offer the best RV-ing experience for just two persons (eventually 2+kids).
Check: --> Tips for buying an RV
and --> Buying Lite Travel Trailers
Review of top Truck Campers

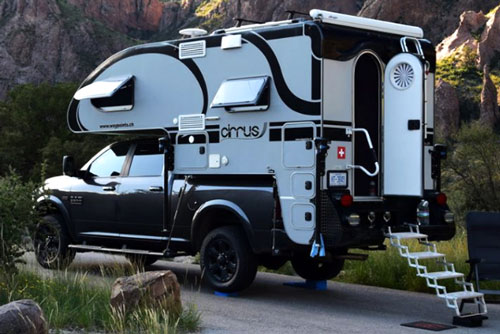

Cirrus-920 truck camper
Cirrus 920 is one of the latest models of truck campers introduced on the market by NuCamp, following the success of its younger “brother” 820. While the latter was designed for short-bed trucks, the model 920 is designed for long-bed (8ft) trucks. Despite its generous dimensions and features, thanks to its well-engineered lightweight construction it can be carried by popular ¾ ton pickup trucks.....
See details at: --> Cirrus-920 Truck Camper

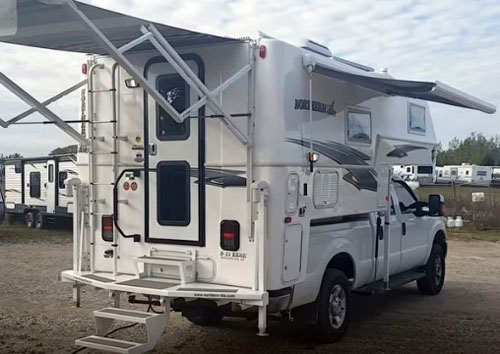

Northern-Lite 8-11EXLEDB truck camper
The Northern Lite Limited-Edition version of dry-bath 8-11EX truck camper is the high-end, 4-seasons RV. Modern clam-shell, molded fiberglass design promises trouble-free operation over long years of RV-ing even in harsh weather conditions typical for Canada. The model 8-11EXLEDB is designed, furnished and finished according to highest standards rarely seen in truck campers. Model’s stylishness and elegance is matched by its practicality and robustness, making it sort of “Cadillac” among other truck campers...
See details at: --> 8-11EX truck camper

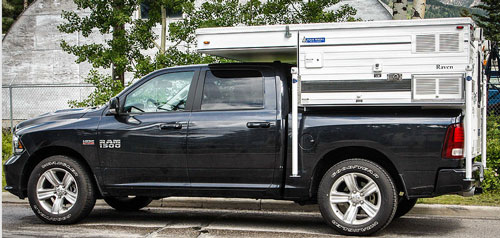

Raven pop-up track camper in road configuration promises low aerodynamic profile and good stability (especially in "no-road" conditions)
Technically speaking, a truck camper can embark on any trip where a truck can go. Given the fact that typical trucks can easily go off beaten roads, truck campers offer an ideal solution for those committed to explore Mother Nature.
However, “things” get a bit more complicated when it comes to off-road driving. The truth is that when driving on uneven terrain, the location of the gravity center is of crucial importance for the overall stability of the truck and sitting on its bed camper.
Fortunately, the new class of truck campers – called “Pop-up truck campers” greatly helps to make such trips smooth and safe. These models when opened offer all comfort (and headroom) of traditional hard-wall truck campers. However, when folded (road configuration), they only slightly increase the location of the gravity center and so are ideal for off-road adventures.
And here comes the Raven: a modern, lite, robust pop-up truck camper designed and manufactured by Four Wheel Campers especially for off road adventures.
See details at: --> Raven pop-up Truck Camper

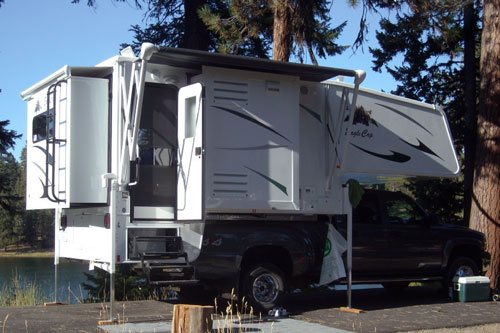

Eagle Cap 1165 Truck Camper
Courtesy of: Rick & Julie Christensen
Most of us (including many RV-ers) have perception that truck campers are nothing more than a sort of “Mobile huts”. Well, these days such assumption reflects rather the past. Integration of slide-outs into truck campers completely changed the game. These modern designs, initially with one, followed by two and finally three slide-outs, made physically possible to design luxurious, residential-like truck campers – something that for long was incompatible with this class of RVs.
So here it is: The Eagle Cap 1165 triple-slide truck camper is a “residential-style” (by “truck-campers standards”) RV. Spacious, elegant but also well-designed and engineered, it is the real king among truck campers. As stated by the company's founder, Mr. Erdman Epp: "(we) were never satisfied until Good is Better, and Better is Best". Indeed, you can take these words with respect....
To find details please follow to:
Work in progress :-)
