Rockwood 1905/1905BH is lightly heavier than 3,000 lbs, but offers much better floor-plan, amenities and comfort than most of similar medium-size travel trailers....


      On the previous page we presented Rockwood's Mini-Lite 1905 & 1905BH travel trailers. We discussed their pros and cons to justify our decision to put them on the list of top medium-size RVs for 2018. If you did not have the chance to read this text combined with numerous pictures please visit the page: --> Mini-Lite 1905 Travel Trailer

I'm pretty sure that after "visiting" the mentioned above page you will agree that Rockwood for the year 2018 came-up with some of the best designs combining user-very-friendly floor-plans, genuine set of features promising RV-ing comfort and what is also important - all that an an affordable cost. Below you will find 1905/1905BH technical parameters and list of features.

Rockwood Mini-Lite 1905BH travel trailer: Model for 2018

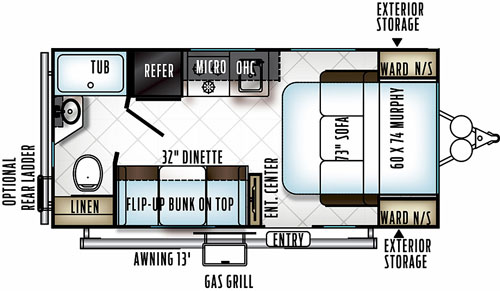

And its floor-plan (if you remember the 1905 floor-plan, the only difference here is that the in the dinette corner, the OVH cabinetry was replaced by the flip-up bunk bed)

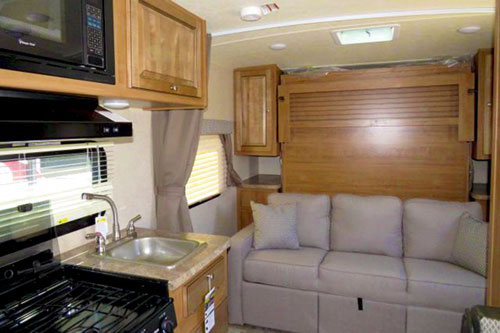

And the view on the kitchen-living area. The sofa is comfortable for day, the Murphy bed behind opens into a "walk-around" queen-size bed for the night. At this moment the large front-cap window (here behind the Murphy's bed) offers great panoramic views on the sky.

The entertainment center "wall" is on the right side of the sofa (here visible only the wall's edge)

Specifications



UVW

CCC

GVWR

Hitch Weight

Exterior Length

Exterior Height

Interior headroom

Exterior Width

Fresh Water

Gray Water

Black Water

LPG

Awning Size

Sleeps (1)

1905

3,368 lb.

1,066 lb.

4,434 lbs

434 lb.

1905BH

3,339 lbs

1,079 lbs

4,434 lbs

418 lbs

20' 11"

10' 6"

6’8”

96"

43 gal.

30 gal.

30 gal.

2 x 20lbs

13’

2 (3)

3 (4)


1. Maximum sleeping capacity with dinette converted into a single bed

Construction:

  • Chassis: hot-bolted steel-I-beam’s
  • Shell: All aluminum frame (6-sided) with vacuum-bonded, core-foam insulated, laminated sidewalls and fiberglass exterior finish
  • Roof: Radius, 4” thick single piece w/rubber-composite membrane
  • Insulation: R-14 (roof), R-12 (floor), R-7 sidewalls
  • Protection: Diamond panel (lower front)
  • Windows: frameless, tinted
  • Interior finish: wallpaper/wood
  • Axles: 1
  • Suspension: Independent, Dexter Torflex, self-dampening
  • Wheels:  Aluminum rims, R15 nitrogen-filled tires
  • Brakes: Self-adjusting electric drums
  • Floor: Vinyl

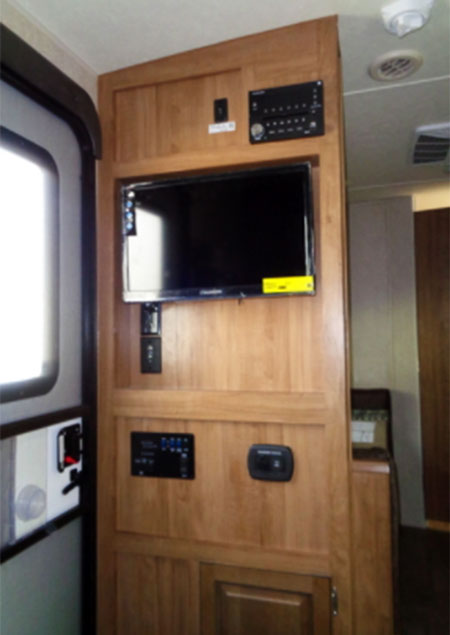

Entertainment Center is facing living quarters: sofa during the day and bedroom for night (with walk-around Murphy bed)

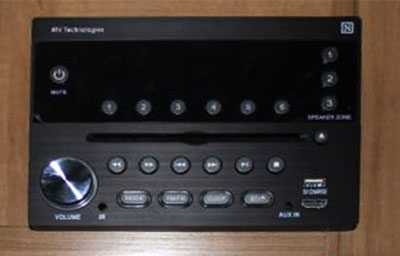

AM/FM/CD/DVD/Bluetooth Stereo is standard, while the TV screen is an option

Note that you can control the Stereo using your cell-phone.

Standard Features

Interior

  • Driftwood-finish (optionally Maple wood)
  • Screwed/glued cabinetry w/solid-wood panel doors, drawers
  • AM/FM/CD/DVD/Bluetooth Stereo w/ int/ext speakers and remote control
  • Dinette seats and 73” wide sofa w/leather-like breathable micro-fiber covers
  • Night shades

Bunk bed offers an extra sleeping place for one person. It comes with the ladder (standard feature) and its own "little window"

Bedroom & Sleeping Space

  • Queen-size walk-around gas-struts assisted Murphy-bed
  • Heated mattress
  • 2 wall cabinets
  • 2 nightstands w/drawers
  • Privacy curtain
  • Flip-up bunk bed (above the dinette) w/access ladder (1905BH)
  • Converted into single bed dinette

Kitchen

  • 3-burner gas range w/flush-mounted cover
  • Range hood w/electric fan and lights
  • Large, built-in 2-way refrigerator w/automatic mode switch
  • Built-in Microwave oven
  • Single-bowl stainless-steel sink w/cover (cutting board) and high-rise 2-lever faucet
  • Storage cabinets (under-sink, overhead and above the fridge)
  • 32”-wide Dinette w/free-standing aluminum-frame laminated table
  • Large under-seat storage drawer (the space under the 2nd seat is used for water heater compartment)

Bath

  • Tub/shower combo w/vinyl curtain
  • Toilet (plastic w/foot-flush)
  • Vanity w/sink and GFCI electrical outlet
  • Medicine cabinet
  • Extra-large linen cabinet
  • Dome-shaped Skylight (above the shower)
  • Small rear window (not opening)
  • Maxair vent
  • Heat vent (from ducted heating system)

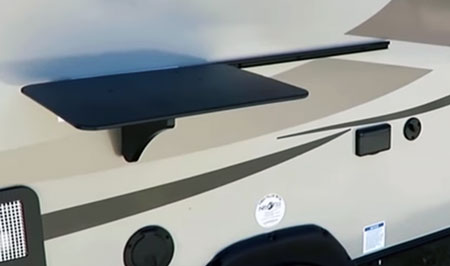

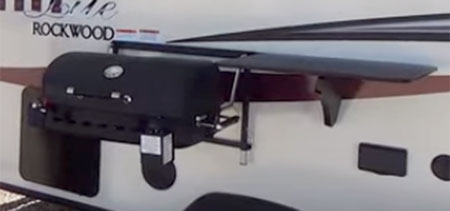

Exterior grill comes with mounting kit and table (see below)

Exterior features

  • 2 x 20lbs LPG bottes w/molded cover
  • Power awning w/LED lights
  • Porch lights and yellow bug light
  • Radius, friction-hinge entrance door w/separate screen door
  • Folding, assist grab-handle
  • Double entry step
  • Outside grill prep (includes brackets for worktable and grill)
  • Spare tire carrier & cover
  • 4-Stabilizer jacks (scissors-type)
  • Electrical outlets (12Vdc/110Vac/USB)

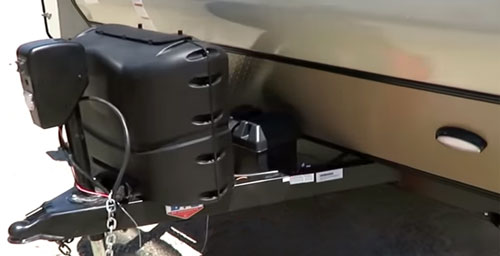

LPG tanks (2 bottles) and the battery (all tongue-mounted) come with molded fiberglass covers. The Power Jack is optional.

Note the LED light on the camper's shell (useful for late night arrivals)

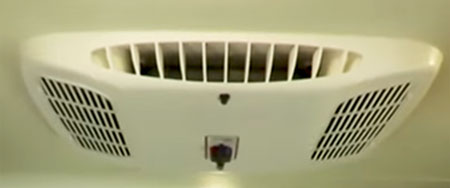

The low-profile roof-mounted A/C Unit is optional

Climate control

  • Roof-mounted 13.5k BTU A/C (optional)
  • Ducted heating system w/furnace
  • Maxxair® Ventilation Fan and Vent Cover
  • Rain-protected opening windows

Electrical

  • 55A Converter w/charger
  • Tongue-mounted battery w/molded cover (optional)
  • Battery disconnect switch
  • Monitor Panel
  • WiFi Ranger/Booster with secure connection
  • Interior/exterior outlets throughout (110Vac GFCI-protected, 12Vdc and USB ports)
  • Back-up camera prep w/molded mounting plate
  • TV prep (int/ext)
  • TV antenna w/cable & satellite hook-up
  • Solar prep (40A Zaamp portable solar panel is optional)
  • 30A Shore connection
  • LED lights throughout w/ single safety switch

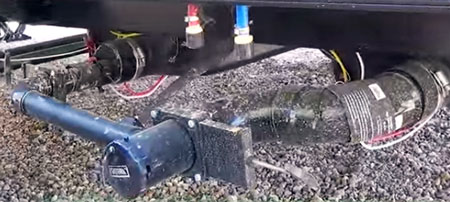

Black and grey water tank drains as well as two small (blue and red color) fresh water drains.

Note also the installed heating pads (however as both models do not have enclosed underbelly, they will not be very efficient in preventing water freezing!

Water/Plumbing

  • 6 gallons, DSI gas/electric Water Heater w/bypass
  • Water filtration system
  • Black tank flush
  • City & Fresh water hook-ups
  • Winterization inlet-valve
  • Water tanks’ drains
  • Exterior shower w/hot & cold water
  • Sewer hose (stored in the rear bumper)

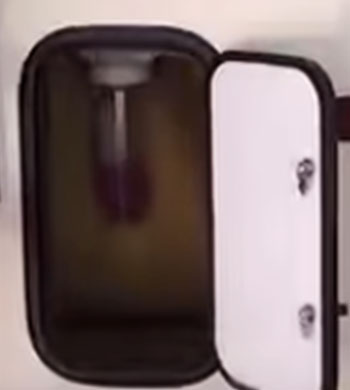

The front compartment houses water filter. With some care it can be also used to store some small "stuff"

Extra Storage

  • Dinette under-seat drawer
  • Two Exterior front compartments w/magnetic door catches
  • Storage under the sofa

Safety

  • Spare tire (rear-mounted)
  • Electric brakes
  • Alarm detectors (CO, LP, smoke)
  • Fire extinguisher

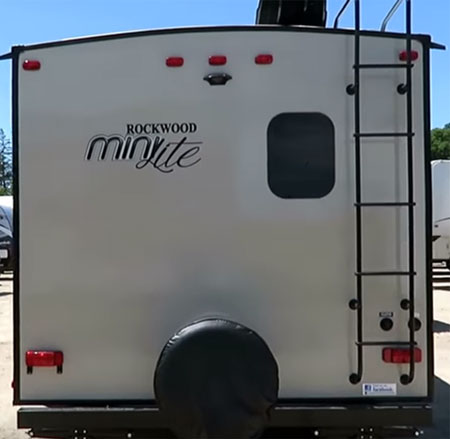

Rear ladder is optional

Options

  • 12V deep-cycle battery w/molded cover
  • 13.5k BTU roof-mounted A/C
  • 24” LCD TV
  • Exterior gas grill w/worktable
  • Rear ladder
  • Tongue-mounted bike rack
  • Power tongue jack w/built-in LED light
  • Portable solar panel
  • Heated tanks pads (12V electric)

Summarizing: Mini-Lite 1905 and 1905BH travel trailers offer more than expected from the class of small/medium-size RVs. Slightly heavier than 3,000 lbs, they provide comfort, functionality and elegance rarely seen in similar travel trailers and all that at the very reasonable initial cost.

Go back to: --> Review of Top RVs for 2018

Note:  Check with the manufacturer and / or authorized RV Dealer for the up-to-date list of features, options as well as latest specifications. These written above may not be accurate and certainly are subject to change by the factory. We are not responsible for any inaccuracy, the above text is provided only for the general information.

This review was written based on publicly available information for the benefits of the community of RV-ers. We do not receive any gratification or financial benefits from RV manufacturers, dealers, and any other promoters of RVs.
